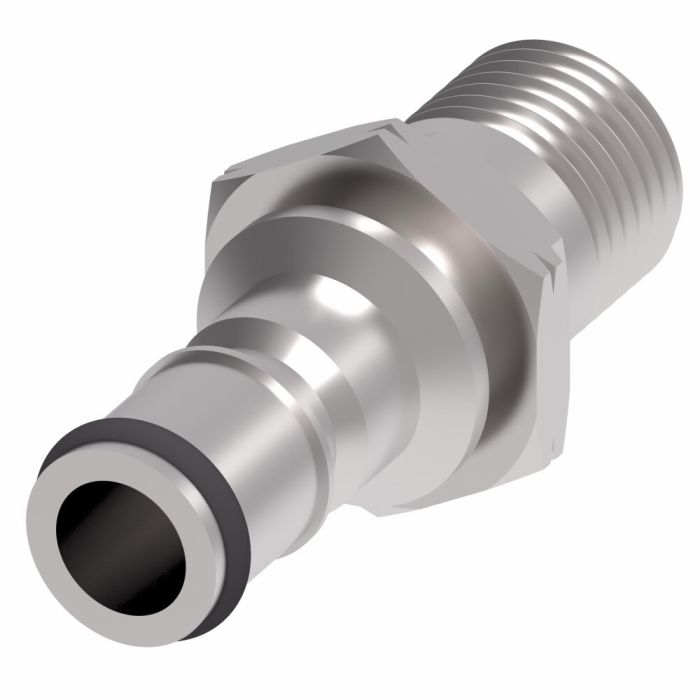

Designed for demanding environments including chemical processing, food and beverage, military, and aerospace applications, this stainless steel male half quick disconnect coupling from the Danfoss / Eaton Coupling Hansen 2HKIG/2HKIL series delivers reliable, tool-free connection and disconnection in a compact form factor.
The ball lock internal connection type and push-to-connect end ensure fast, secure engagement without additional hardware. A 1/4 in. NPT male thread on the secondary end and a Buna-N seal provide compatibility across a range of common fluid media. Rated for a minimum working temperature of -40°F and exceeding ISO 16028 operating pressures, this coupling is suited to high-demand hydraulic and fluid transfer circuits. Flow capacity is rated at 2.2 gallons per minute.
Manufactured under the Aeroquip brand within Eaton's Hansen product line, this coupling carries no safety locking mechanism, which should be factored into system design for regulated or critical-duty applications.
SKU: 2KGF15
Supplier Part Number (MPN): 2KGF15
|
Alternate Part Numbers
MINO-00402X02568
|
Application
Chemical, Food and Beverage, Military, Aerospace
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
2.2 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Stainless Steel
|
Product Width
1
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
2KGF15
|
Product Weight
0.13 lbs
|
