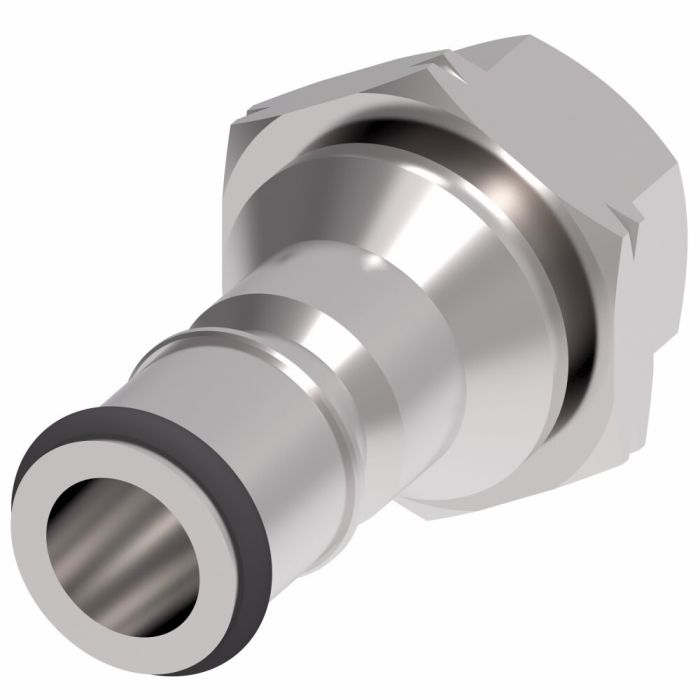

Designed for demanding environments including chemical processing, food and beverage, military, and aerospace applications, this stainless steel male half quick disconnect coupling connects via a push-to-connect mechanism and threads to a 7/16-20 UNF female port. The ball lock internal connection type provides secure engagement without requiring special tools, and the unit exceeds ISO 16028 operating pressure standards.
The Cplng, HKIG Series OtherPlug features a Buna-N seal and is rated for a minimum working temperature of -40°F, making it suitable for use in low-temperature service conditions. Rated flow is 2.2 gallons per minute. No safety locking mechanism is incorporated, keeping the design straightforward for high-cycle disconnect applications.
Manufactured under the Aeroquip brand's Hansen sub-brand, this coupling is part of the 2HKIG/2HKIL series product family.
SKU: 2KIGF720
Supplier Part Number (MPN): 2KIGF720
|
Alternate Part Numbers
MINO-00402X02671
|
Application
Chemical, Food and Beverage, Military, Aerospace
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.44
|
End Type 1
Push to Connect
|
End Type 2
UNF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
2.2 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Stainless Steel
|
Product Width
1.01
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
2KIGF720
|
Product Weight
0.12 lbs
|
