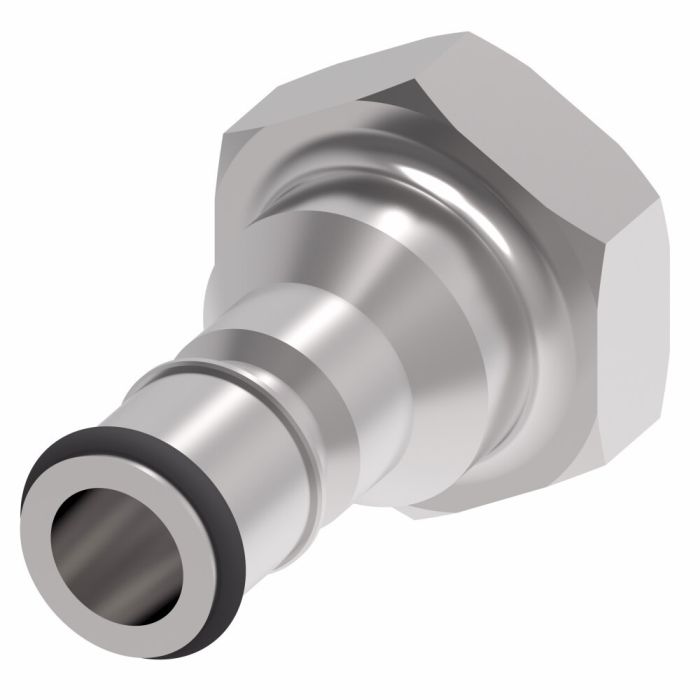

Designed for demanding service environments, this stainless steel male half plug is part of the Eaton Hansen 2HKIG/2HKIL Series and connects via a push-to-connect end with a 7/16-inch UNF female port on the opposing end. A ball lock internal connection mechanism ensures a secure, leak-resistant coupling without the need for special tools. The Buna-N seal supports a minimum working temperature of -40°F, making it suitable for cold-environment applications.
The Danfoss / Eaton/Hansen Cplng Plug is rated for a flow rate of 2.2 gallons per minute and meets performance levels that exceed ISO 16028 operating pressure requirements. Approved for use across chemical, food and beverage, military, and aerospace applications, it is part of the Aeroquip product family under the Hansen sub-brand.
SKU: 2KLS3
Supplier Part Number (MPN): 2KLS3
|
Alternate Part Numbers
MINO-00402X02679
|
Application
Chemical, Food and Beverage, Military, Aerospace
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.44
|
End Type 1
Push to Connect
|
End Type 2
UNF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
2.2 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Stainless Steel
|
Product Width
0.75
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
2KLS3
|
Product Weight
0.10 lbs
|
