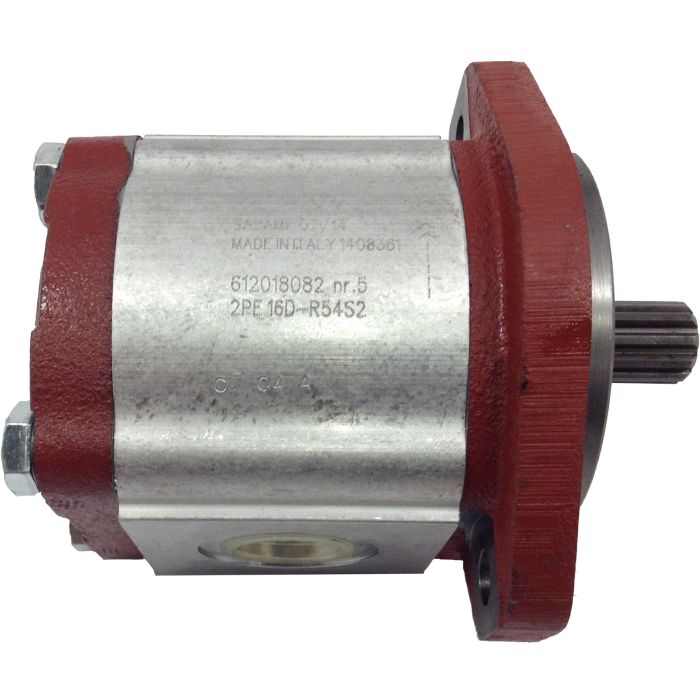

2PE Series Aluminum Gear Pump, 0.27 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Description & Features

Manufactured by Salami Hydraulics, the 2PE Series Aluminum Gear Pump delivers a displacement of 0.27 cu in/rev with a rated flow of 2 GPM and is suited for mobile and industrial hydraulic circuits requiring a compact, lightweight gear pump solution.

The pump features a 2-Bolt SAE A mounting flange and a 9-tooth SAE A splined shaft, with clockwise rotation as standard. Port connections are SAE -12 inlet and SAE -10 outlet. Continuous working pressure is rated to 3,600 PSI, with peak pressures supported up to 4,350 PSI and intermittent speeds up to 4,000 RPM.

Floating bushings provide axial compensation for consistent volumetric efficiency across the working pressure range, while DU bearings support high-pressure capability. Standard Buna-N seals are rated for operating temperatures from -4°F to 185°F. The pump is configurable as part of a multiple-unit assembly and is available with various shaft, flange, and port options to suit SAE and European standards.

SKU: 612033722

Supplier Part Number (MPN): 612033722

Alternate Part Numbers: C1MV69

Specifications

Displacement 0.27	Displacement 0.27	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports SAE -12 Inlet, SAE -10 Outlet	Ports SAE -12 Inlet, SAE -10 Outlet	Pressure Rating 3600	Rated Flow 2	Rated Flow 2	Rotation CW	Shaft 9 Tooth SAE A Splined	Shaft 9 Tooth SAE A Splined	Speed Rating 4000 RPM	Speed Rating 4000 RPM	Supplier Part Number 612033722	Alternate Part Numbers Alternate Part Number C1MV69	Product Weight 7.90 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
612035432 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035442 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081662 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081692 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612081722 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612018082 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612033722 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612034572 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612035122 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035142 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612035322 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612036832 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079042 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079072 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612079082 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612080552 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080562 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080662 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612081642 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612081672 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081682 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081702 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612081712 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612095942 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095952 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095962 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600

Product Questions & Answers (2)

Question by: Kent S on Jul 11, 2025, 11:52 AM

Will this gear pump work okay with standard hydraulic fluid?

Answer by: Customer Support on Jul 13, 2025, 6:33 AM

Normal operation calls for fluid in the 85 SUS to 297 SUS range, though it can handle minimums of 66 SUS if you reduce working pressure by 80% and run at minimum speed.

Question by: Todd M on Jan 1, 2026, 7:56 PM

rotation on this one is clockwise out of the box, but can that be changed if my setup needs it to run the other way?

Answer by: Customer Support on Jan 3, 2026, 8:35 AM

Clockwise is the standard configuration, yes. Switching to counterclockwise rotation is possible by reversing the positions of the drive shaft and driven shaft and rotating the front flange. No special tools or replacement parts are required for that change, just a mechanical repositioning during installation.
