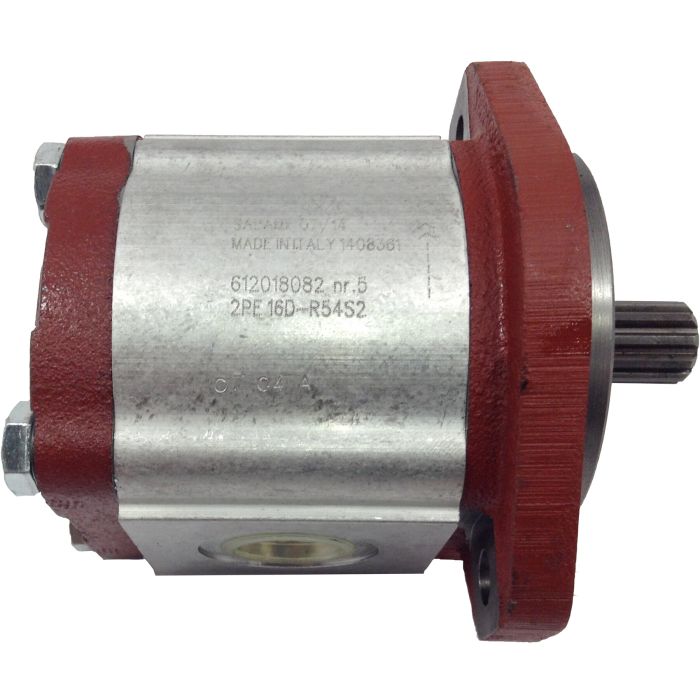

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Description & Features

Designed specifically for demanding industrial applications, the Salami S.p.A 2PE Series Aluminum Gear Pump ensures precision and reliability. This gear pump features a displacement of 0.84 cu in/rev and is equipped with a 2-Bolt SAE A Mounting Flange, making it ideal for fixed displacement systems. It includes a 3/4 St Keyed Shaft measuring 1.25 inches in length, complete with SAE -12 Inlet and SAE -10 Outlet ports.

This pump is engineered for CW Rotation and can operate efficiently at continuous speeds up to 3500 RPM, with intermittent speeds reaching up to 4000 RPM. The maximum pressure rating of 3600 PSI ensures high performance under rigorous conditions. Additionally, the pump incorporates innovative axial compensation via floating bushings, maintaining high volumetric efficiency across the working pressure range.

All units are customizable with options in shafts, flanges, and ports per European, German, and American standards. It is suited for industrial environments requiring durable and efficient pump solutions. The temperature rating varies depending on the seals used, allowing versatile operation from -4deg;F to 230deg;F with FPM seals.

MPN: 612035442

Supplier Part Number: 612035442

Specifications

Displacement 0.84	Displacement 0.84	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports SAE -12 Inlet, SAE -10 Outlet	Ports SAE -12 Inlet, SAE -10 Outlet	Pressure Rating 3600	Rated Flow 6.50	Rated Flow 6.5	Rotation CW	Shaft 3/4 St Keyed x 1.25 long SAE A	Shaft 3/4 St Keyed x 1.25 long SAE A	Speed Rating 3500 RPM	Speed Rating 3500 RPM	Supplier Part Number 612035442	Alternate Part Numbers Alternate Part Number 2PE13.8D-R85S2, Alternate Part Number C1MR34	Product Weight 7.00 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
612035432 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035442 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081662 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081692 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612081722 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612018082 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612033722 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612034572 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612035122 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035142 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612035322 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612036832 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079042 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079072 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612079082 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612080552 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080562 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080662 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612081642 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612081672 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081682 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081702 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612081712 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612095942 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095952 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095962 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600

Product Questions & Answers (3)

Question by: Harold M on Apr 26, 2025, 7:19 PM

rotation on this pump -- is it strictly clockwise or can that be changed out in the field?

Answer by: Customer Support on Apr 28, 2025, 6:02 AM

Clockwise is how it ships, but the rotation is not locked in permanently. You can switch it to counterclockwise by reversing the position of the drive shaft and driven shaft, then rotating the front flange. Not a complicated job if you have the pump in front of you and know your way around the assembly.

Question by: Vince J on Jul 3, 2025, 7:31 AM

What kind of filtration does this pump need to keep running right?

Answer by: Customer Support on Jul 4, 2025, 6:18 PM

For pressures under 2900 PSI, shoot for ISO 4406 20/19/16. If you're pushing it harder, over 2900 PSI, then you'll want to tighten that up to 19/18/15.

Question by: Hubert M on Jan 30, 2026, 4:24 PM

pump's rated for 3600 PSI continuous, but what kind of speeds we talkin before it starts losing efficiency?

Answer by: Customer Support on Feb 1, 2026, 6:01 AM

Continuous operation tops out at 3500 RPM for this displacement, and intermittent bursts can go up to 4000 RPM. The axial compensation design using floating bushings is what keeps volumetric efficiency solid across the working pressure range, so you're not bleeding off performance as pressure climbs. At 0.84 cu in/rev, rated flow comes in around 6.5 GPM. Running it within those speed limits is where you'll get the most out of it.
