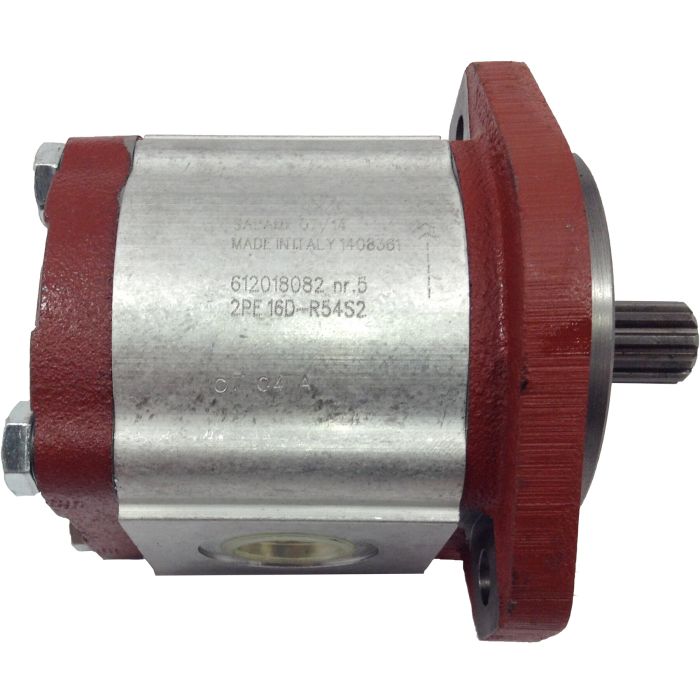

2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Description & Features

SALAMI S.p.A offers a high-performing solution with its gear pump tailored for demanding industrial needs.

This unit features a 2-Bolt SAE A mounting flange and a 9 tooth SAE A splined shaft to ensure reliable and stable connections. Its displacement of 0.68 cu in/rev is engineered for efficiency and precision.

Designed for optimal performance the pump sustains continuous speed at working pressure up to 3500 RPM with an intermittent capability reaching 4000 RPM.

Equipped with SAE -12 inlet and SAE -10 outlet ports the pump ensures streamlined fluid transfer while the clockwise rotation supports consistent functionality.

The robust pressure rating allows operations at 3600 PSI with peak pressures up to 4350 PSI. The innovative design includes floating bushings and DU bearings enabling high volumetric efficiency and pressure capability.

Suitable for multiple configurations this unit offers various shafts flanges and ports adhering to European German and American standards.

MPN: 612079042

Specifications

Displacement 0.68	Displacement 0.68	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports SAE -12 Inlet, SAE -10 Outlet	Ports SAE -12 Inlet, SAE -10 Outlet	Pressure Rating 3600	Rated Flow 5.20	Rated Flow 5.2	Rotation CW	Shaft 9 Tooth SAE A Splined	Shaft 9 Tooth SAE A Splined	Speed Rating 3500 RPM	Speed Rating 3500 RPM	Supplier Part Number 612079042	Alternate Part Numbers Alternate Part Number 2PE11.3D-R52S2, Alternate Part Number C1MR36	Product Weight 7.00 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
612035432 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035442 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081662 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081692 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612081722 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612018082 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612033722 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612034572 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612035122 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035142 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612035322 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612036832 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079042 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079072 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612079082 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612080552 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080562 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080662 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612081642 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612081672 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081682 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081702 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612081712 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612095942 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095952 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095962 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600

Product Questions & Answers (1)

Question by: Judy M on May 5, 2025, 8:21 PM

runs about 3500 RPM continuous on my skid steer loader setup, this pump gonna hold up at that speed or is that pushing it?

Answer by: Customer Support on May 7, 2025, 6:18 AM

3500 RPM is right at the continuous rated speed for this pump, so you're running it right at its design limit, not beyond it. It can handle intermittent bursts up to 4000 RPM if your system spikes occasionally, but for steady sustained use, staying at or just under 3500 keeps things in the safe zone. The floating bushing design helps maintain volumetric efficiency across the working pressure range, so you're not sacrificing output just because you're running it hard. As long as your fluid viscosity stays in the normal operating range of 85 to 297 SUS and your filtration meets the ISO 4406 spec, this unit should hold up fine at that duty level.
