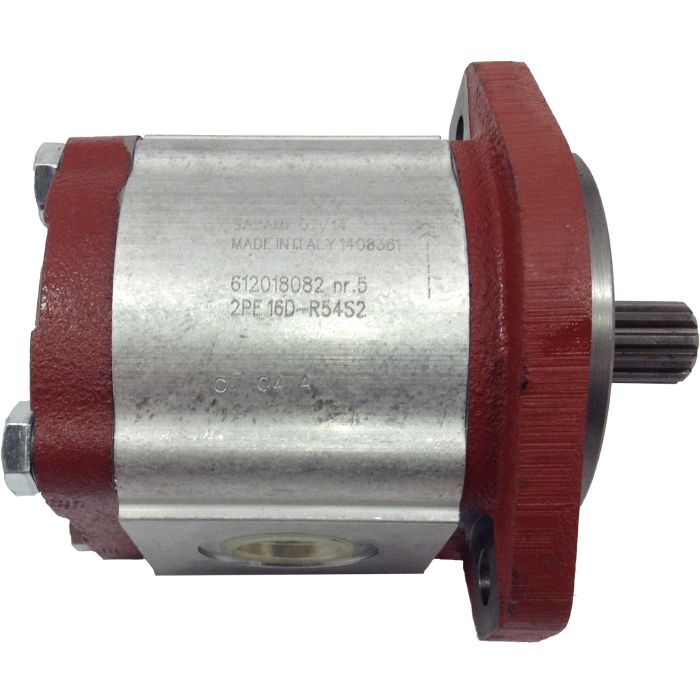

2PE Series Aluminum Gear Pump, 1.37 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Description & Features

SALAMI S.p.A offers a durable and high-performing gear pump designed for fixed displacement applications. This model features a 1.37 cubic inches per revolution displacement ensuring optimal operation.

The 2-bolt SAE A mounting flange provides secure attachment and the 9-tooth SAE A splined shaft guarantees efficient torque transfer.

The SAE -12 inlet and SAE -10 outlet ports allow for reliable fluid handling.

Rated for up to 2900 PSI continuous working pressure and capable of handling peak pressures up to 4350 PSI this pump supports demanding industrial environments.

The pump operates at speeds up to 2750 RPM with intermittent speeds reaching 4000 RPM.

Axial compensation via floating bushings ensures high volumetric efficiency across the entire pressure range.

DU bearings deliver exceptional pressure capability making this pump perfect for various mechanical systems.

Standard Buna-N seals offer a temperature range of -4deg;F to 185deg;F with optional FPM seals (Viton) extending up to 230deg;F.

With its clockwise rotation and configurable features to meet European German and American standards this pump is versatile and reliable.

The recommended fluid viscosity range and filtration standard ISO 4406 fulfill stringent operational requirements.

MPN: 612079072

Supplier Part Number: 612079072

Specifications

Displacement 1.37	Displacement 1.37	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports SAE -12 Inlet, SAE -10 Outlet	Ports SAE -12 Inlet, SAE -10 Outlet	Pressure Rating 2900	Rated Flow 10.60	Rated Flow 10.6	Rotation CW	Shaft 9 Tooth SAE A Splined	Shaft 9 Tooth SAE A Splined	Speed Rating 2750 RPM	Speed Rating 2750 RPM	Supplier Part Number 612079072	Alternate Part Numbers Alternate Part Number 2PE22.5D-R52S2, Alternate Part Number C1MR38	Product Weight 8.00 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
612035432 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035442 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081662 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081692 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612081722 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612018082 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612033722 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612034572 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612035122 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035142 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612035322 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612036832 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079042 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079072 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612079082 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612080552 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080562 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080662 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612081642 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612081672 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081682 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081702 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612081712 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612095942 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095952 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095962 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600

Product Questions & Answers (1)

Question by: Rusty W on Jun 26, 2025, 8:45 AM

rotation on this one is clockwise only, or can it be switched around if needed?

Answer by: Customer Support on Jun 27, 2025, 4:43 PM

Clockwise is the standard setup, but the rotation can be reversed by swapping the position of the drive shaft and driven shaft and rotating the front flange. So if your system runs counterclockwise, it's not a dealbreaker, just requires that adjustment during setup.
