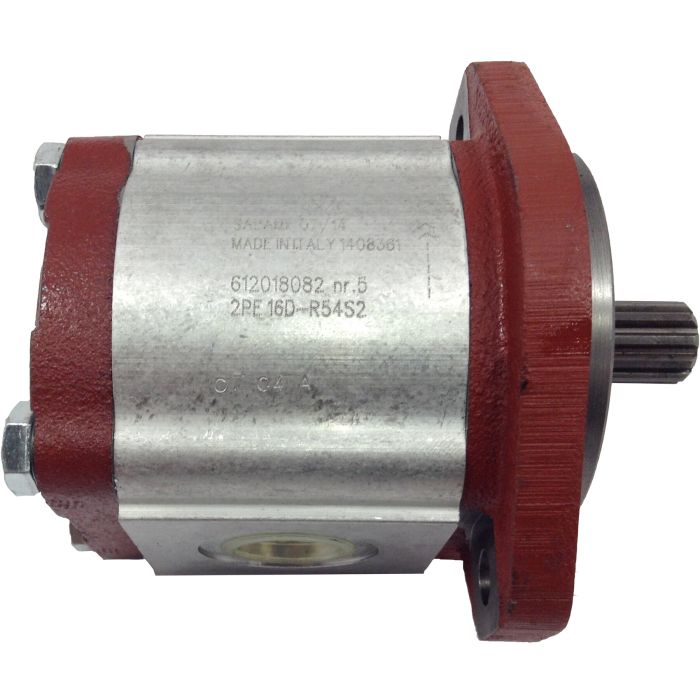

The 2PE Series Aluminum Gear Pump delivers high volumetric efficiency through its innovative design and precise machining tolerances. With a displacement of 1.58 cubic inches per revolution this gear pump features a 2-bolt SAE A mounting flange and a 9 tooth SAE A splined shaft. It is equipped with an SAE -12 inlet and SAE -10 outlet and operates clockwise. Salami gear pumps feature axial compensation via floating bushings ensuring consistent high volumetric efficiency across the working pressure range. The pump boasts a pressure rating of 2600 PSI and a speed rating of up to 2500 RPM with the capability of reaching intermittent speeds up to 4000 RPM. Additionally the temperature range extends from -4deg;F to 230deg;F with FPM seals. For maximum pressure reliability DU bearings are included supporting high-pressure applications. This product accommodates various standards for shafts flanges and ports including European German and American specifications. The pump is designed for ease of maintenance with reversible shaft and flange configurations allowing for directional changes.
MPN: C1MR39
Supplier Part Number: 612079082
Loading related products…
Specifications
Brand
Salami
Dimensions
6.47 in L x 5.188 in W x 4.44 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4350 psi
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
