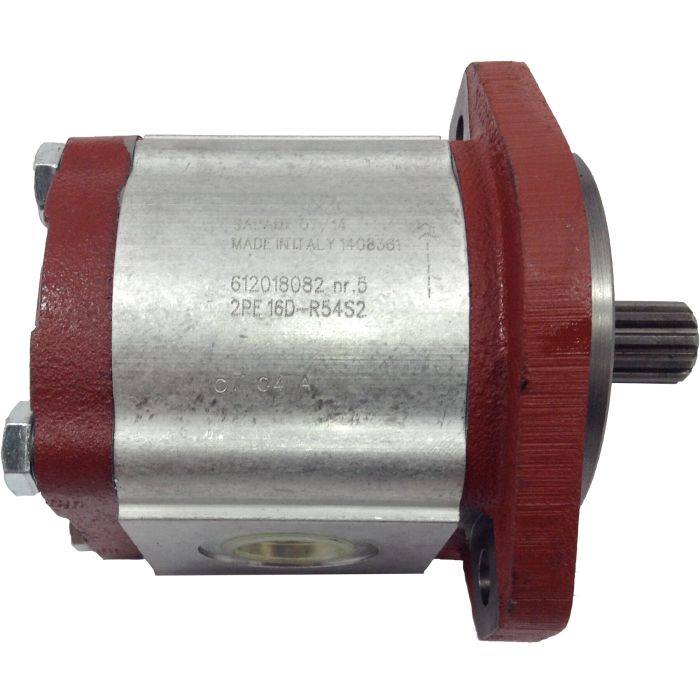

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Description & Features

The SALAMI S.p.A 2PE Series Aluminum Gear Pump is designed for precision and efficiency with a displacement of 0.84 cu in/rev. Featuring a durable 2-Bolt SAE A Mounting Flange this pump is engineered to support a wide range of hydraulic applications. The 9 Tooth SAE A Splined Shaft ensures reliable performance while the SAE -12 Inlet and SAE -10 Outlet provide versatile connectivity options.

With a continuous pressure rating of 3600 PSI and capable of handling peak pressures up to 4350 PSI this gear pump is suitable for demanding environments. The CW rotation and rated flow of 6.5 provide optimal performance and speeds reach up to 3500 RPM for efficient operation.

The advanced design includes axial compensation with floating bushings for high volumetric efficiency throughout the pressure range. DU bearings enhance the pump's capability to sustain high pressures. It's recommended to follow ISO 4406 filtration standards and use fluids with an operating viscosity between 85 SUS to 297 SUS for best results.

Additionally the pump's temperature rating extends from -4deg;F to 185deg;F with Buna-N seals and up to 230deg;F with FPM seals. The model accommodates various shaft flange and port options conforming to European German and American standards. Ensuring high precision and durability the 2PE Series Aluminum Gear Pump is a reliable choice for fixed displacement gear applications.

MPN: C1MR41

Supplier Part Number: 612080562

Specifications

Displacement 0.84	Displacement 0.84	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports SAE -12 Inlet, SAE -10 Outlet	Ports SAE -12 Inlet, SAE -10 Outlet	Pressure Rating 3600	Rated Flow 6.50	Rated Flow 6.5	Rotation CW	Shaft 9 Tooth SAE A Splined	Shaft 9 Tooth SAE A Splined	Speed Rating 3500 RPM	Speed Rating 3500 RPM	Supplier Part Number 612080562	Alternate Part Numbers Alternate Part Number 2PE13.8D-R52S2, Alternate Part Number C1MR41	Product Weight 7.00 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
612035432 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035442 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081662 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081692 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612081722 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612018082 2PE Series Aluminum Gear Pump	1.01	7.8	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3600
612033722 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612034572 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612035122 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612035142 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612035322 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612036832 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079042 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612079072 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612079082 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612080552 2PE Series Aluminum Gear Pump	0.5	3.8	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080562 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612080662 2PE Series Aluminum Gear Pump	1.58	12.3	2-Bolt SAE A	11 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	2500 RPM	2600
612081642 2PE Series Aluminum Gear Pump	0.27	2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612081672 2PE Series Aluminum Gear Pump	0.68	5.2	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081682 2PE Series Aluminum Gear Pump	0.84	6.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3500 RPM	3600
612081702 2PE Series Aluminum Gear Pump	1.15	8.5	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	3000 RPM	3140
612081712 2PE Series Aluminum Gear Pump	1.37	10.6	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	2750 RPM	2900
612095942 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	5/8 St. Keyed x 1.25, SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095952 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	3/4 St Keyed x 1.25 long SAE A	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600
612095962 2PE Series Aluminum Gear Pump	0.4	3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE -12 Inlet, SAE -10 Outlet	CW	4000 RPM	3600

Product Questions & Answers (2)

Question by: Carl D on Sep 17, 2025, 8:28 PM

Will this gear pump work okay with a hydraulic system that sees pressures around 3500 PSI pretty regularly?

Answer by: Customer Support on Sep 19, 2025, 6:48 AM

This 2PE series pump handles continuous pressures up to 3600 PSI, so it should work fine in your system. Just keep in mind the peak pressure is rated at 4350 PSI.

Question by: Eddie C on Nov 20, 2025, 7:31 AM

pump's rated for 3600 PSI continuous but i got a system that occasionally spikes up around 4000, is that gonna be an issue or is there enough headroom built in?

Answer by: Customer Support on Nov 21, 2025, 5:54 PM

Peak pressure on this unit is rated at 4350 PSI, so occasional spikes into the 4000 range fall within that ceiling. The continuous working pressure is 3600 PSI, meaning sustained operation needs to stay at or below that. Intermittent excursions above continuous rating are normal in hydraulic systems, and the 750 PSI of headroom between continuous and peak gives you a reasonable buffer for those transient spikes.
