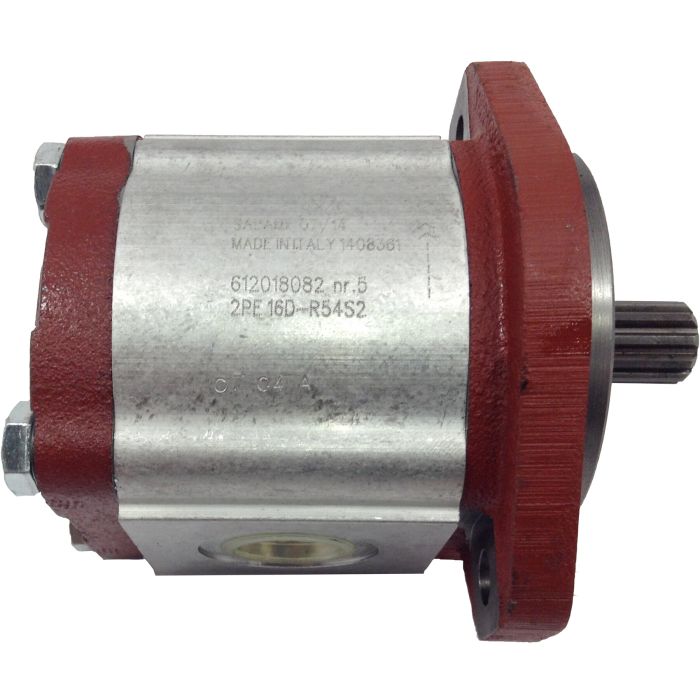

main product photo

2PE Series Aluminum Gear Pump, 0.50 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Ask A Question

Description & Features

The 2PE Series Aluminum Gear Pump by Salami Hydraulics NA Inc features a robust design with a 2-Bolt SAE A mounting flange, ensuring reliable performance. Boasting a displacement of 0.50 cu in/rev, this gear pump is capable of handling pressures up to 3600 PSI with a rated flow of 3.8 GPM.

Engineered for flexibility, this pump offers compatibility with various shafts, flanges, and ports while meeting European, German, and American standards. The axial compensation, provided by floating bushings, maintains high volumetric efficiency across the working pressure range.

Operating at speeds up to 3500 RPM, the 5/8 St. Keyed SAE A Shaft ensures stability and precision. The pump is designed for clockwise rotation, although it can easily be adjusted to counter-clockwise by repositioning the drive and driven shafts and rotating the front flange.

Pressure ratings include an inlet pressure range of 7.38 in. Hg to 21.7 PSI and capability of handling continuous working pressures with peak pressures up to 4350 PSI. The pump's filtration requirements adhere to ISO 4406 standards.

The temperature rating spans from -4deg;F to 185deg;F with Buna-N seals and up to 230deg;F with FPM seals, supporting a variety of applications. Recommended fluid viscosity ranges from 66 SUS to 3635 SUS, with a normal operating range of 85 SUS to 297 SUS.

MPN: C1MR44

Supplier Part Number: 612081662

Specifications

Brand
Salami
Dimensions
4.984 in L x 5.188 in W x 4.44 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4350 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Aluminum
Inlet Type
SAE Threaded
Mount
2-Bolt SAE A
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
2PE Series
Shaft
5/8 in Straight Keyed x 1-1/4 in SAE A

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Action
2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035432 2PE Series Aluminum Gear Pump

0.68

5.2

2-Bolt SAE A

3/4 St Keyed x 1.25 long SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035442 2PE Series Aluminum Gear Pump

0.84

6.5

2-Bolt SAE A

3/4 St Keyed x 1.25 long SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.01 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081692 2PE Series Aluminum Gear Pump

1.01

7.8

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3000 RPM

3600

2PE Series Aluminum Gear Pump, 1.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081722 2PE Series Aluminum Gear Pump

1.58

12.3

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

2500 RPM

2600

2PE Series Aluminum Gear Pump, 1.01 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612018082 2PE Series Aluminum Gear Pump

1.01

7.8

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3000 RPM

3600

2PE Series Aluminum Gear Pump, 0.27 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612033722 2PE Series Aluminum Gear Pump

0.27

2

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

2PE Series Aluminum Gear Pump, 1.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612034572 2PE Series Aluminum Gear Pump

1.58

12.3

2-Bolt SAE A

3/4 St Keyed x 1.25 long SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

2500 RPM

2600

2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035122 2PE Series Aluminum Gear Pump

0.68

5.2

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.15 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035142 2PE Series Aluminum Gear Pump

1.15

8.5

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3000 RPM

3140

2PE Series Aluminum Gear Pump, 1.37 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035322 2PE Series Aluminum Gear Pump

1.37

10.6

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

2750 RPM

2900

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612036832 2PE Series Aluminum Gear Pump

0.84

6.5

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612079042 2PE Series Aluminum Gear Pump

0.68

5.2

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.37 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612079072 2PE Series Aluminum Gear Pump

1.37

10.6

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

2750 RPM

2900

2PE Series Aluminum Gear Pump, 1.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612079082 2PE Series Aluminum Gear Pump

1.58

12.3

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

2500 RPM

2600

2PE Series Aluminum Gear Pump, 0.50 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612080552 2PE Series Aluminum Gear Pump

0.5

3.8

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612080562 2PE Series Aluminum Gear Pump

0.84

6.5

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612080662 2PE Series Aluminum Gear Pump

1.58

12.3

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

2500 RPM

2600

2PE Series Aluminum Gear Pump, 0.27 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081642 2PE Series Aluminum Gear Pump

0.27

2

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081672 2PE Series Aluminum Gear Pump

0.68

5.2

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081682 2PE Series Aluminum Gear Pump

0.84

6.5

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.15 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081702 2PE Series Aluminum Gear Pump

1.15

8.5

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3000 RPM

3140

2PE Series Aluminum Gear Pump, 1.37 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081712 2PE Series Aluminum Gear Pump

1.37

10.6

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

2750 RPM

2900

2PE Series Aluminum Gear Pump, 0.40 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612095942 2PE Series Aluminum Gear Pump

0.4

3

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

2PE Series Aluminum Gear Pump, 0.40 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612095952 2PE Series Aluminum Gear Pump

0.4

3

2-Bolt SAE A

3/4 St Keyed x 1.25 long SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

2PE Series Aluminum Gear Pump, 0.40 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612095962 2PE Series Aluminum Gear Pump

0.4

3

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

Product Questions & Answers (5)

Question by: Bobby B on Oct 31, 2025, 9:53 AM
What kind of fluid should I be running in this pump?
Answer by: Customer Support on Nov 2, 2025, 6:12 AM
Normal operation should be with fluid that’s between 85 and 297 SUS. You can get away with 66 SUS, but you gotta knock the working pressure way back.
Question by: Billy R on Apr 12, 2025, 5:41 PM
rotation on this thing, does it come set up for clockwise or do I need to flip it around before I put it on?
Answer by: Customer Support on Apr 14, 2025, 7:07 AM
Clockwise rotation is standard out of the box. If your system runs counterclockwise, you can switch it by swapping the positions of the drive shaft and driven shaft and rotating the front flange. No special tools or parts needed for that, just a matter of reassembly before you get it mounted up.
Question by: Freddie H on Apr 8, 2025, 6:40 AM
got a 2-bolt SAE A mount on my setup. Is this pump gonna bolt right up, and what shaft does it come with?
Answer by: Customer Support on Apr 9, 2025, 9:48 PM
It uses a 2-Bolt SAE A mounting flange and an SAE A shaft that is 5/8 straight keyed x 1.25, so it matches that common SAE A bolt pattern and keyed shaft style.
Question by: Danny B on Aug 8, 2025, 12:03 PM
can this pump be switched to run counter-clockwise, or is it stuck at CW only?
Answer by: Customer Support on Aug 10, 2025, 7:10 AM
Clockwise is the default setup, but counter-clockwise is doable. You'd need to swap the positions of the drive shaft and driven shaft, then rotate the front flange. It's a repositioning job rather than a parts swap, so no special components required to make that change.
Question by: Debbie P on Jan 6, 2026, 9:04 PM
got a setup that needs a 2-bolt SAE A mount, will this pump bolt right up and what are the port sizes?
Answer by: Customer Support on Jan 8, 2026, 5:14 PM
It uses a 2-bolt SAE A mounting flange and it comes with an SAE -12 inlet and an SAE -10 outlet, so it matches that common SAE A bolt pattern and those specific port sizes.
