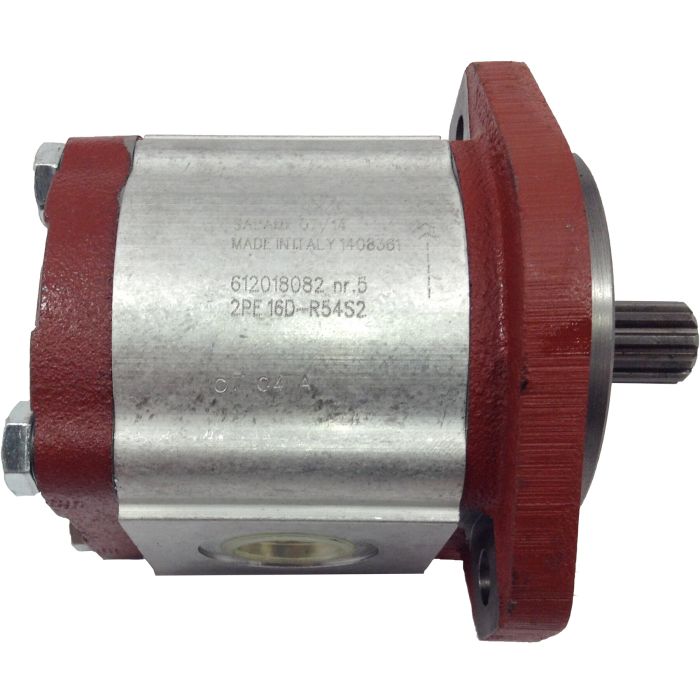

2PE Series Aluminum Gear Pump, 1.01 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

Ask A Question

Description & Features

The 2PE Series Aluminum Gear Pump, manufactured by Salami S.p.A, delivers impressive performance with a displacement of 1.01 cu in/rev and a pressure rating of 3600 PSI. Engineered for efficiency, it features a 2-Bolt SAE A Mounting Flange and a 5/8 St. Keyed x 1.25 SAE A Shaft. The pump is configured with a CW rotation and is equipped with SAE -12 Inlet and SAE -10 Outlet ports.

The high volumetric efficiency is achieved through innovative design and precise control of machining tolerances. Axial compensation is maintained by floating bushings, ensuring consistent performance under varying pressure conditions. DU bearings further enhance its pressure capability.

Adaptable to multiple configurations, the unit supports different shafts, flanges, and ports standards, including European, German, and American. It operates efficiently within a speed range up to 4000 RPM and supports intermittent speeds. The temperature rating extends from -4deg;F to 185deg;F with Buna-N seals, and up to 230deg;F with Viton seals.

MPN: C1MR47

Supplier Part Number: 612081692

Specifications

Brand
Salami
Dimensions
5.564 in L x 5.188 in W x 4.44 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4350 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Aluminum
Inlet Type
SAE Threaded
Mount
2-Bolt SAE A
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
2PE Series
Shaft
5/8 in Straight Keyed x 1-1/4 in SAE A

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Action
2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035432 2PE Series Aluminum Gear Pump

0.68

5.2

2-Bolt SAE A

3/4 St Keyed x 1.25 long SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035442 2PE Series Aluminum Gear Pump

0.84

6.5

2-Bolt SAE A

3/4 St Keyed x 1.25 long SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 0.50 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081662 2PE Series Aluminum Gear Pump

0.5

3.8

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081722 2PE Series Aluminum Gear Pump

1.58

12.3

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

2500 RPM

2600

2PE Series Aluminum Gear Pump, 1.01 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612018082 2PE Series Aluminum Gear Pump

1.01

7.8

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3000 RPM

3600

2PE Series Aluminum Gear Pump, 0.27 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612033722 2PE Series Aluminum Gear Pump

0.27

2

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

2PE Series Aluminum Gear Pump, 1.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612034572 2PE Series Aluminum Gear Pump

1.58

12.3

2-Bolt SAE A

3/4 St Keyed x 1.25 long SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

2500 RPM

2600

2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035122 2PE Series Aluminum Gear Pump

0.68

5.2

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.15 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035142 2PE Series Aluminum Gear Pump

1.15

8.5

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3000 RPM

3140

2PE Series Aluminum Gear Pump, 1.37 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612035322 2PE Series Aluminum Gear Pump

1.37

10.6

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

2750 RPM

2900

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612036832 2PE Series Aluminum Gear Pump

0.84

6.5

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612079042 2PE Series Aluminum Gear Pump

0.68

5.2

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.37 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612079072 2PE Series Aluminum Gear Pump

1.37

10.6

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

2750 RPM

2900

2PE Series Aluminum Gear Pump, 1.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612079082 2PE Series Aluminum Gear Pump

1.58

12.3

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

2500 RPM

2600

2PE Series Aluminum Gear Pump, 0.50 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612080552 2PE Series Aluminum Gear Pump

0.5

3.8

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612080562 2PE Series Aluminum Gear Pump

0.84

6.5

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.58 cu in/rev, 2-Bolt SAE A Mounting Flange, 11 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612080662 2PE Series Aluminum Gear Pump

1.58

12.3

2-Bolt SAE A

11 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

2500 RPM

2600

2PE Series Aluminum Gear Pump, 0.27 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081642 2PE Series Aluminum Gear Pump

0.27

2

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

2PE Series Aluminum Gear Pump, 0.68 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081672 2PE Series Aluminum Gear Pump

0.68

5.2

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081682 2PE Series Aluminum Gear Pump

0.84

6.5

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3500 RPM

3600

2PE Series Aluminum Gear Pump, 1.15 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081702 2PE Series Aluminum Gear Pump

1.15

8.5

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

3000 RPM

3140

2PE Series Aluminum Gear Pump, 1.37 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612081712 2PE Series Aluminum Gear Pump

1.37

10.6

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

2750 RPM

2900

2PE Series Aluminum Gear Pump, 0.40 cu in/rev, 2-Bolt SAE A Mounting Flange, 5/8 St. Keyed x 1.25, SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612095942 2PE Series Aluminum Gear Pump

0.4

3

2-Bolt SAE A

5/8 St. Keyed x 1.25, SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

2PE Series Aluminum Gear Pump, 0.40 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St Keyed x 1.25 long SAE A Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612095952 2PE Series Aluminum Gear Pump

0.4

3

2-Bolt SAE A

3/4 St Keyed x 1.25 long SAE A

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

2PE Series Aluminum Gear Pump, 0.40 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE -12 Inlet, SAE -10 Outlet, CW Rotation

612095962 2PE Series Aluminum Gear Pump

0.4

3

2-Bolt SAE A

9 Tooth SAE A Splined

SAE -12 Inlet, SAE -10 Outlet

CW

4000 RPM

3600

Product Questions & Answers (4)

Question by: Travis A on Jan 8, 2026, 6:30 PM
rotation on this one is clockwise out of the box, but can it be flipped to run counter-clockwise if needed?
Answer by: Customer Support on Jan 10, 2026, 6:58 AM
Clockwise is the default, but reversing the rotation is doable. You swap the positions of the drive shaft and the driven shaft, then rotate the front flange. No special tooling or parts are required beyond what comes with the unit. Just make sure you account for that change when hydraulic connections your inlet and outlet lines.
Question by: Ralph P on Feb 28, 2026, 2:01 PM
Reckon this'll bolt right up to a standard SAE A mount?
Answer by: Customer Support on Mar 1, 2026, 4:00 PM
It sure will. This gear pump uses a 2-bolt SAE A mounting flange, so it should fit your application if you've already got that standard in place.
Question by: Hank B on Jan 28, 2026, 7:10 AM
got a 2-bolt SAE A mount and SAE -12 suction with a -10 pressure line. is this pump set up that way, or am i gonna be adapting stuff
Answer by: Customer Support on Jan 29, 2026, 7:39 PM
Fit-wise it matches that setup. It has a 2-bolt SAE A mounting flange, an SAE -12 inlet port, and an SAE -10 outlet port.
Question by: Hank G on Nov 6, 2025, 3:11 PM
rotation on this one is clockwise out of the box, but what if my setup needs CCW, is that something that can be changed or am I looking at a different pump altogether?
Answer by: Customer Support on Nov 7, 2025, 6:44 PM
Clockwise is the standard rotation as stocked, but switching to counterclockwise is doable. You reverse the position of the drive shaft and driven shaft, then rotate the front flange. No need to source a separate pump just for rotation direction.
