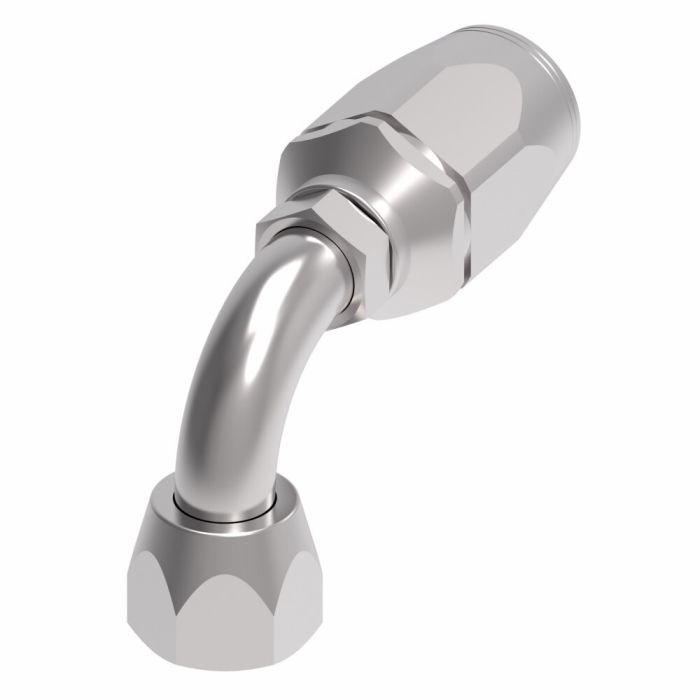

Aeroquip M/M 2W Reusable Fitting

Ask A Question

Description & Features

Designed for -12 hose dash size applications, the Aeroquip M/M 2W Reusable Fitting connects a SAE 37 (JIC) female end to a line, hose, or tube end in a 90-degree short drop configuration. Constructed from carbon steel, it offers reliable performance across a wide range of hydraulic hose assembly environments.

As a reusable fitting assembly, it is well suited to applications where repeated assembly and disassembly are required, helping to cut assembly times and reduce overall production overhead. With a hex size of 1.5 and a drop dimension of 1.82 inches, the fitting is sized for practical integration into standard hydraulic line routing. The reusable design is consistent with Danfoss/Eaton 2R Series compatibility standards.

SKU: 2RA12FJB12

Supplier Part Number (MPN): 2RA12FJB12

Specifications

a Dimensions
4.11 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
2.36 in
Drop Dimensions
1.82 in
End Connection Torque
79 to 87 lb-ft
End Gender 1
Female
End Size 1
12
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
EC215, GH781, GH793 and H280 Series Hoses
Hex Size
1.25 in, 0.938 in
Hose Dash Size
12
Inside Diameter
0.58 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
C
Series
2R Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Roy B on Nov 3, 2025, 10:10 AM
Reckon this’ll hold up okay if I’m constantly havin’ to take it apart and put it back together?
Answer by: Customer Support on Nov 5, 2025, 6:40 AM
This reusable design is made for exactly that – repeated assembly and disassembly. It’ll definitely cut down on your time compared to a one-time use fitting.
