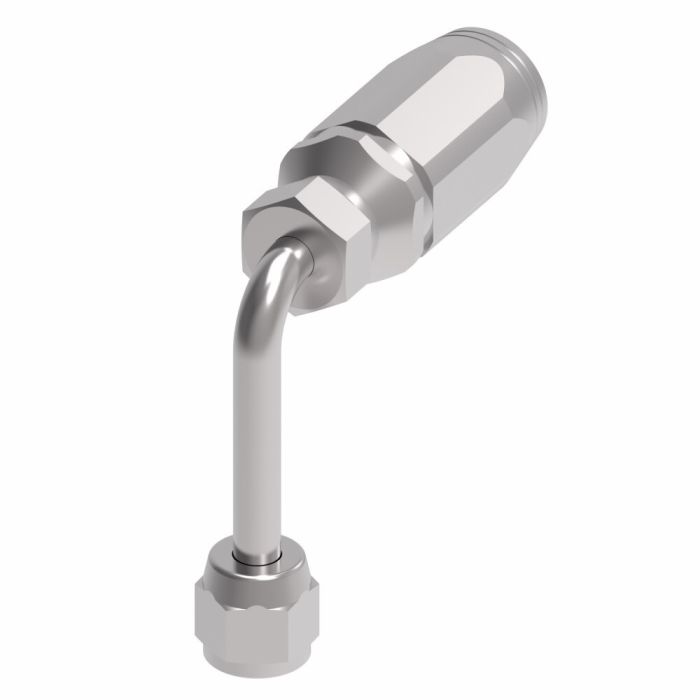

Aeroquip M/M 2W Reusable Fitting

Ask A Question

Description & Features

This Aeroquip M/M 2W Reusable Fitting is suitable for a wide range of applications. This fitting assembly offers durability and dependability in demanding hydraulic environments, and is designed to cut assembly times and boost production.

The fitting is constructed from carbon steel. It features a female end with a 0.4375" SAE 37 connection, and is designed for use with a -4 hose dash size. The drop dimension is 1.8000", and the hex size is 0.81".

SKU: 2RA4FJC4

Supplier Part Number (MPN): 2RA4FJC4

Specifications

a Dimensions
2.4 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.23 in
Drop Dimensions
1.8 in
End Connection Torque
11 to 12 lb-ft
End Gender 1
Female
End Size 1
7/16 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
EC215, GH781, GH793 and H280 Series Hoses
Hex Size
0.563 x 0.688 in
Hose Dash Size
04
Inside Diameter
0.15 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
C
Series
2R Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Sherry H on Dec 18, 2025, 3:51 PM
I need a JIC 90 fitting with a long drop, and this looks promising. What's the drop dimension on this one?
Answer by: Customer Support on Dec 20, 2025, 6:23 AM
The drop dimension on this Aeroquip fitting is 1.8000 inches.
