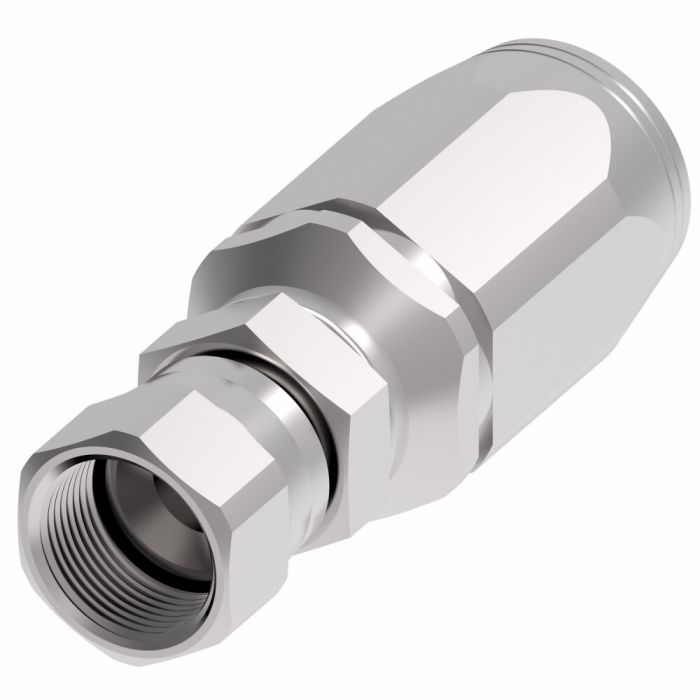

Aeroquip M/M 2W Reusable Fitting

Ask A Question

Description & Features

The Aeroquip M/M 2W Reusable Fitting crafted by Danfoss Power Solutions (II LLC Aeroquip) excels in a variety of industrial applications. Designed for durability and dependability this fitting significantly reduces assembly times contributing to increased production efficiency.

The fitting features an SAE 37 female end with an end size of 0.5625 inches and a Hex size of 1 inch. Made from carbon steel it ensures robust performance in demanding environments.

Particularly suited for usage in line hose and tube configurations the product supports a wide range of applications without the need for additional adjustments or calibration. This makes it an ideal choice for efficient and reliable connections.

Supplier Part Number: 2RA6FJ6

MPN: 2RA6FJ6

Specifications

a Dimensions
2.98 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.71 in
Dimensions
2.98 in L
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
9/16 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
EC215, GH781, GH793 and H280 Series Hoses
Hex Size
11/16 in
Hose Dash Size
06
Inside Diameter
0.26 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
C
Series
2R Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Frank W on May 21, 2025, 7:23 PM
What kind of applications is this fitting really good for?
Answer by: Customer Support on May 22, 2025, 9:45 PM
This Aeroquip fitting is particularly well-suited for line hose and tube configurations in industrial settings. Its design aims to deliver reliable connections without needing extra adjustments.
Question by: Sheila P on Oct 24, 2025, 10:06 AM
what kind of end does this fitting have on it, and what size are we talking about
Answer by: Customer Support on Oct 25, 2025, 10:14 AM
One end is an SAE 37 female connection with an end size of 0.5625 inches. The other end is configured for line, hose, or tube hookups. The hex size on the fitting runs 1 inch, and it carries a hose dash size of -6. Carbon steel construction throughout, so it holds up well in working environments where you need something dependable.
