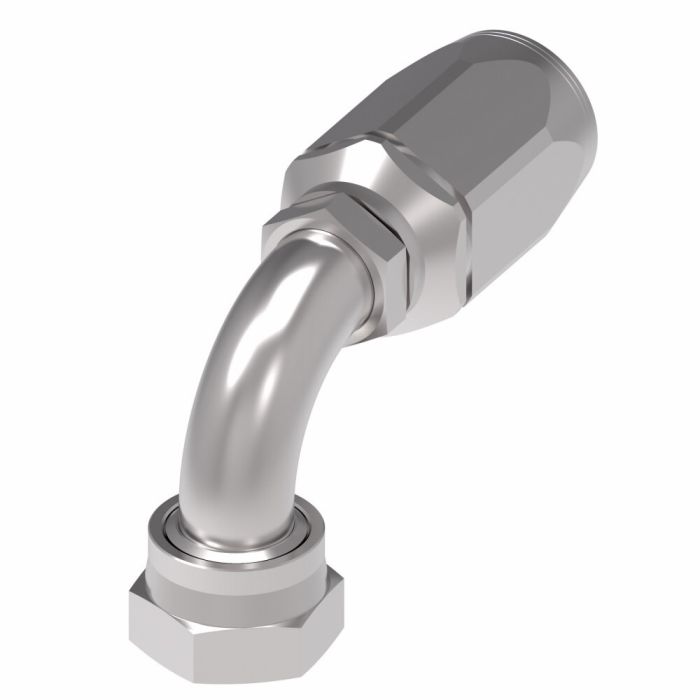

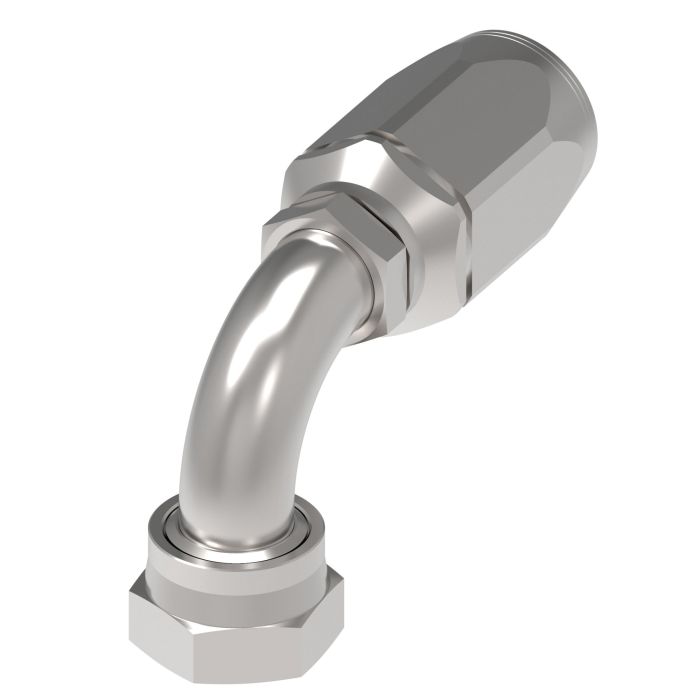

Constructed from carbon steel, the Aeroquip M/M 2W Reusable Fitting is a -6 dash size hose fitting designed for reliable performance across a wide range of hydraulic hose assembly applications. It features an ORS (O-Ring Seal) end type on one side and a line/hose/tube connection on the other, with a 11/16 in. (0.6875 in.) end size and a 1 in. hex on the second end.
The 90° short drop configuration, with a drop dimension of 0.9 in., suits installations where routing space is limited or angled connections are required. As a reusable fitting, it supports efficient assembly and disassembly, helping to reduce waste and cut assembly times in production and maintenance environments. Part of the Aeroquip 2R Series, this fitting assembly is sold individually.
SKU: 2RA6FRB6
Supplier Part Number (MPN): 2RA6FRB6
|
Alternate Part Numbers
MINO-00015X05390
|
Drop Dimension
0.90
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.69
|
End Type 1
ORS
|
End Type 2
Line/Hose/Tube
|
Features
Fit for wide range of applications|Durable and dependable|Cut assembly times and boost production
|
Hex Size 2
1
|
Hose Dash Size
-6
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
Product Material
Carbon Steel
|
Product Width
1
|
Sub Brand
None
|
Supplier Part Number
2RA6FRB6
|
Product Weight
0.39 lbs
|
