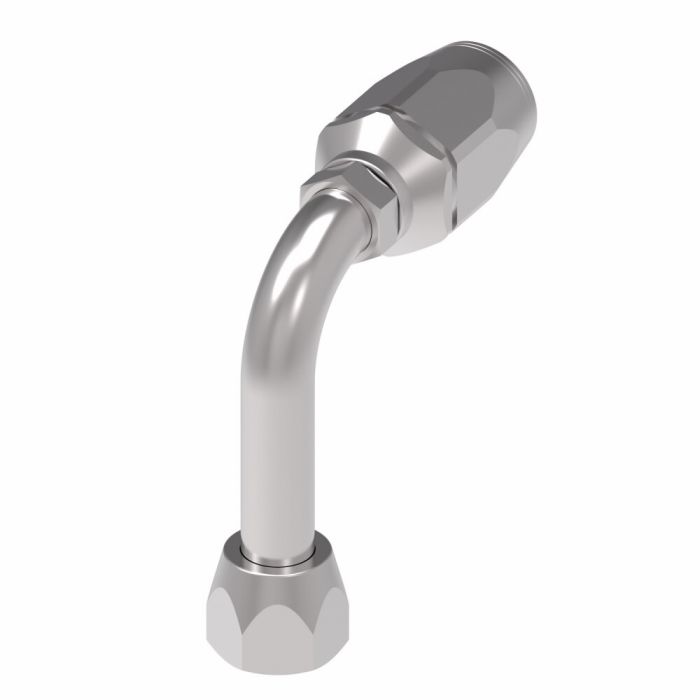

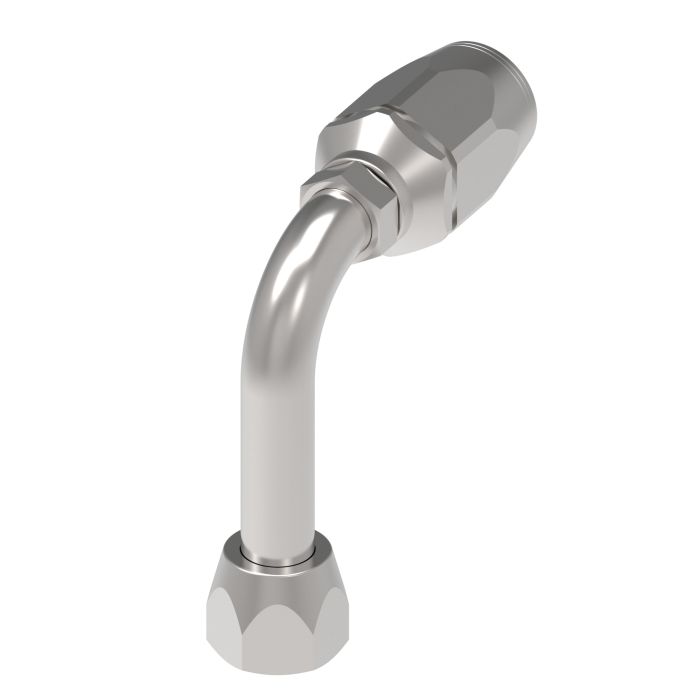

Aeroquip M/M 2W Reusable Fitting

Ask A Question

Description & Features

Designed for reusable assembly on -8 hose dash size applications, this carbon steel fitting features a SAE 37 (JIC) female end with a 90-degree long drop configuration and a 2.430-inch drop dimension. The 1-1/8-inch hex on the hose end supports secure wrench engagement during installation and disassembly, making it well suited for maintenance-intensive hydraulic systems where fittings are regularly serviced or repositioned.

The Aeroquip M/M 2W Reusable Fitting is part of the Aeroquip 2R Series, a line recognized for reliable performance across a wide range of hydraulic hose assembly applications. Reusable construction reduces downtime during hose replacement by allowing the fitting to be removed, inspected, and reinstalled without requiring a new fitting each time. Carbon steel construction provides durability in demanding industrial environments.

SKU: 2RA8FJC8

Supplier Part Number (MPN): 2RA8FJC8

Specifications

a Dimensions
3.15 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.67 in
Drop Dimensions
2 in
End Connection Torque
33 to 40 lb-ft
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
H280 Series Hoses
Hex Size
0.88 x 1.12 in
Hose Dash Size
08
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
C
Series
2R Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Terry S on Jul 27, 2025, 1:57 PM
So this fitting is meant to be taken apart and put back together when you're fixing a hose?
Answer by: Customer Support on Jul 29, 2025, 1:44 PM
That's right, this Aeroquip fitting is designed for exactly that. The reusable design lets you remove it from an old hose, inspect it, and then reinstall it on a new hose, which really cuts down on downtime.
