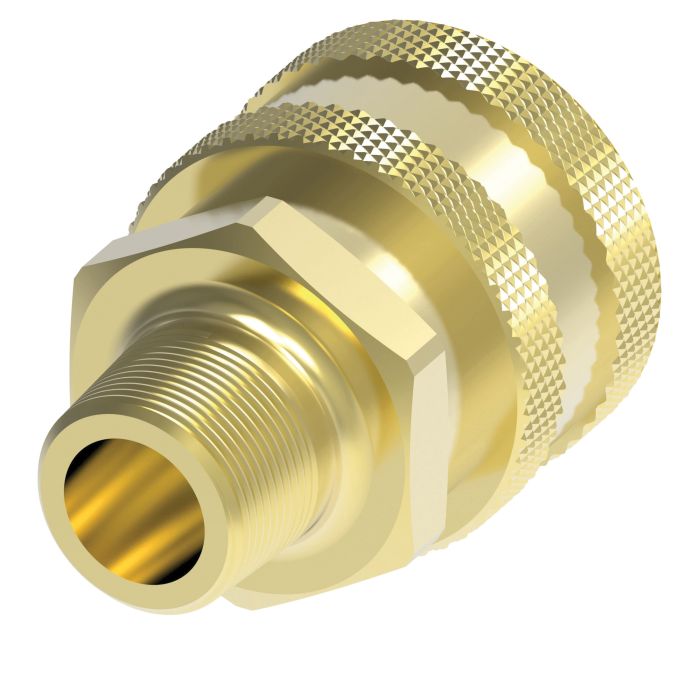

main product photo

Socket

Ask A Question

Description & Features

This Aeroquip Hansen ST Series socket is designed for quick connect and disconnect applications, eliminating the need for special tools. The female half coupling is constructed from brass with Buna-N seals, offering compatibility with a range of fluids.

Applications include fluid transfer, chemical processing, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning. This ball lock internal connection type socket features a 1/4 inch port size and a 5.6 gallons per minute flow rate. It exceeds ISO 16028 operating pressures and operates in temperatures as low as -40 degrees Fahrenheit.

SKU: 2S15

Supplier Part Number (MPN): 2S15

Specifications

Brand
Danfoss
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Style
Manual
Connection Type
MNPT
Connection Type 1
Male NPTF
Connection Type 2
Male NPTF
Dimensions
0.97 in Dia x 1.72 in L
Fitting Type
Coupling
Fluid Compatibility
Versatile Fluids
Hex Size
0.81 in
Latch Type
Push-to-Connect
Material
Brass
Material Construction
Brass
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
ST Series
Thread Size
1/4-18
Valve Type
Straight

Product Questions & Answers (1)

Question by: Sheila E on Oct 10, 2025, 10:47 AM
does this socket hook up to a standard 1/4 inch NPTF port, or do I need some kind of adapter to make it fit?
Answer by: Customer Support on Oct 11, 2025, 11:44 AM
No adapter needed for a 1/4 inch NPTF port. The male end on this socket is 1/4 inch NPTF, so it threads directly into a matching female port without any extra hardware involved.
