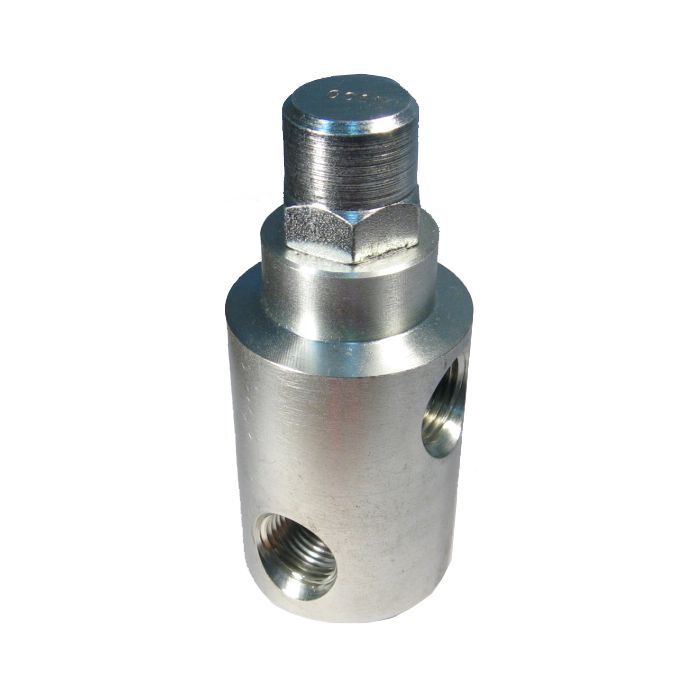

3-Port Direct-Acting Relief Valves, Up To 20 GPM & 3000 PSI

Description & Features

Adjustment Style	Adjustment screw underneath removable cap.
Features	In-line mounting. Precision built. Hardened, replaceable seat.
Maximum Flow Rate	20 GPM.
Maximum Operating Pressure	3000 PSI.

Products

Model Number	Adjustable Range	Ports	Price	Action
RL-50 3-Port Direct-Acting Relief	150-3000	Pressure: 1/2 NPT, Tank: 1/2 NPT
RL-75 3-Port Direct-Acting Relief	150-3000	Pressure: 3/4 NPT, Tank: 1/2 NPT

Product Questions & Answers (1)

Question by: Hubert M on May 15, 2025, 4:20 PM

If I need to adjust the pressure on this valve, do I need any special tools?

Answer by: Customer Support on May 17, 2025, 2:20 PM

You shouldn't need any specialized tools. Pressure adjustment is done via a screw located beneath a removable cap, making field adjustments straightforward.
