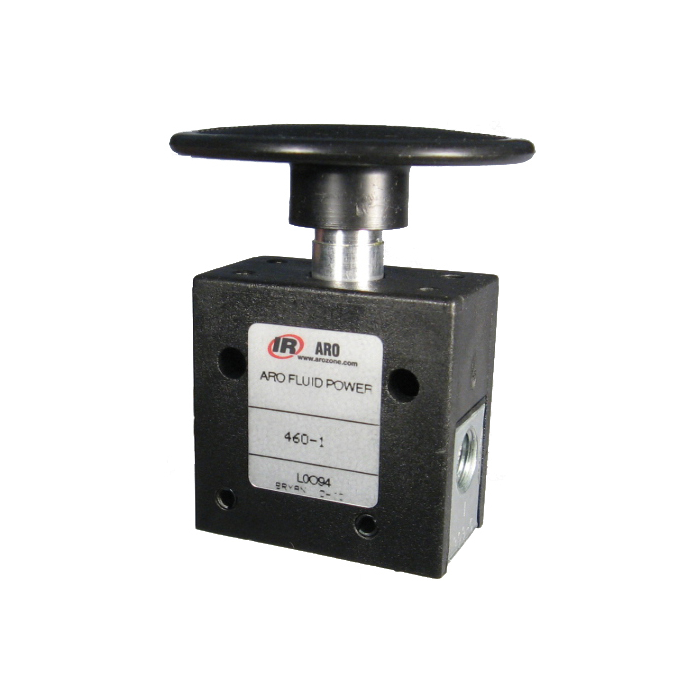

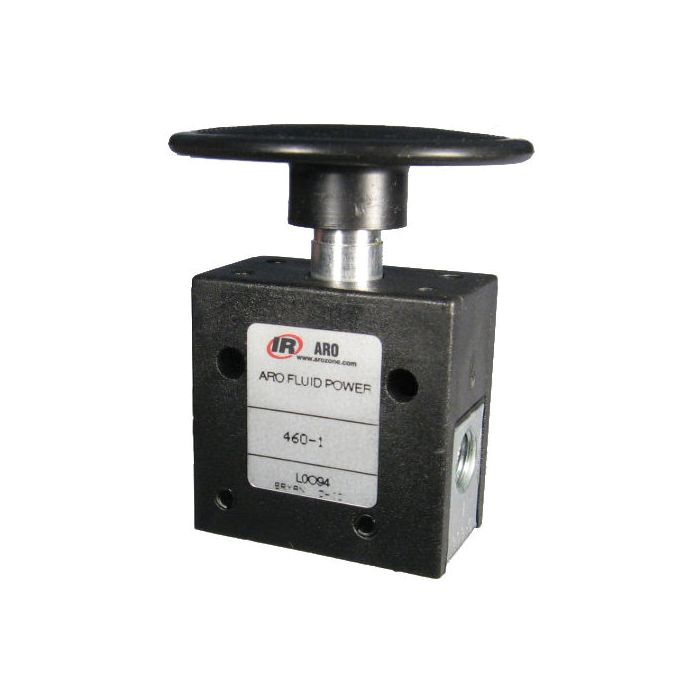

3-Way Palm Button Pneumatic Valve, 1/8 NPT Ports, 7.5 Flow Rating

This manually operated directional valve from Ingersoll-Rand Industrial U.S., Inc. covers a broad range of pneumatic circuit configurations, functioning as a normally closed, normally open, selector, or 2-way valve depending on how it is connected. Operating pressure ranges from 30 to 150 PSIG, with a temperature rating of 32°F to 160°F and a Cv factor of 0.1950. The 3-Way Palm Button Pneumatic Valve, 1/8 NPT Ports, 7.5 Flow Rating delivers a 7.5 SCFM flow rating based on 100 PSIG input and 85 PSIG output. No lubrication is required, and the actuating force is 3 lbs with a travel of 0.078 inches. The 2½-inch palm button is available in four colors, and an optional button guard (20975) provides added protection in demanding environments. Port configuration is 1/8 NPT, with a 5/32 tube fitting option also available.

SKU: 460-1

Supplier Part Number (MPN): 460-1

Alternate Part Numbers: C1BQ63
