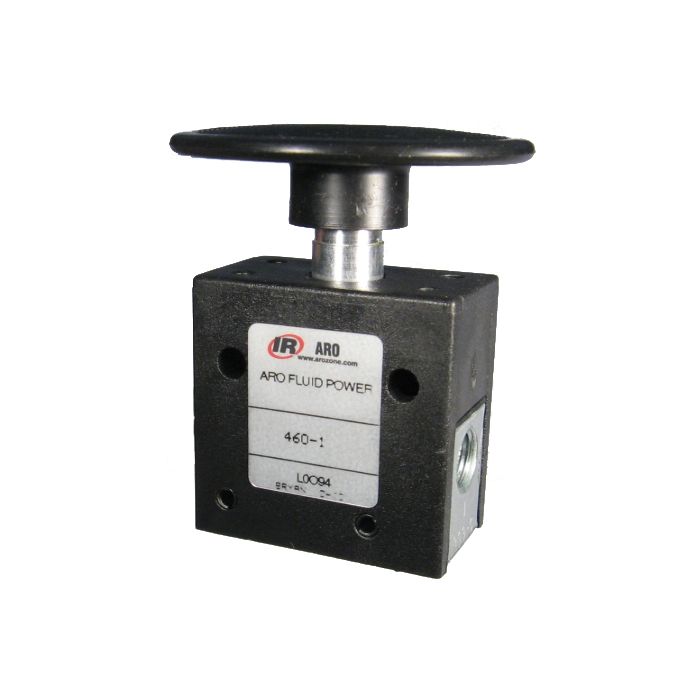

3-Way Palm Button Pneumatic Valves, Up To 7.5 SCFM & 150 PSIG

Description & Features

Application	Valves are multipurpose and can be plumbed to perform as normally closed, normally open, selector or any 2-way function.
Features	2-1/2 inch buttons are available in four colors. Button Guard is available (20975). Available with 1/8 NPT threaded ports or 5/32 tube fittings.
Flow Rating	Based on 100 PSIG input and 85 PSIG output.
Lubrication	Not required.
Operating Pressure Range	30 to 150 PSIG.
Temperature Range	32°F to 160°F.

Model Number	Ports	Valve Type	Flow Rating (SCFM)	CV Factor	Actuating Force	Travel (in)	Price	Action
460-1 3-Way Button Pneumatic Valve	1/8 NPT	Multipurpose	7.5	0.1950	3	0.078
