Din X Male Npt

Description & Features

Designed for straight-through connections between metric and NPT threaded circuits, this Din X Male Npt adapter from Adaptall bridges a DIN tube fitting on one end with a male NPT port on the other. The M16 x 1.5 DIN tube side (L10) mates with metric tube connections, while the 1/4" male NPTF thread on the opposing end suits standard NPT-ported hydraulic components and instrumentation.

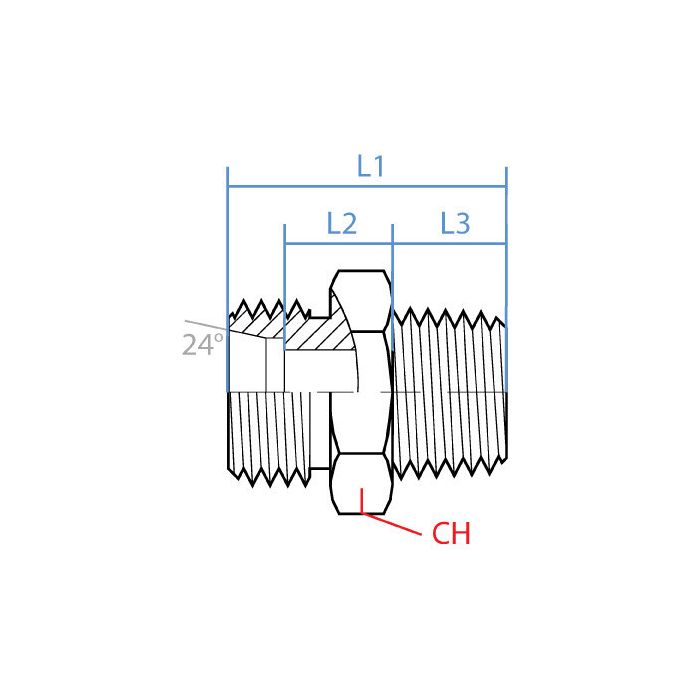

Constructed from steel in a straight configuration, the adapter measures 31mm in overall length with a 17mm across-flats width for wrench engagement. With an L2 length of 9mm and an L3 length of 15mm, the proportions support clean, compact inline installations where space is limited. This fitting is well suited to hydraulic systems that require a reliable transition between DIN-standard tube connections and NPT-threaded ports.

SKU: 5007L-10-04

Supplier Part Number (MPN): 5007L-10-04

Specifications

CH Width 17mm	L1 Length 31mm	L2 Length 9mm	L3 Length 15mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5007L-10-04	Product Weight 0.06 lbs

Product Questions & Answers (1)

Question by: Ralph C on Oct 19, 2025, 6:56 PM

Will this here fitting work to connect a metric tube to somethin' with a regular NPT thread?

Answer by: Customer Support on Oct 21, 2025, 12:18 PM

Use-case-first: Exactly, this Adaptall adapter is made for connecting a DIN tube fitting to a male NPT port. It's a straight-through connection.
