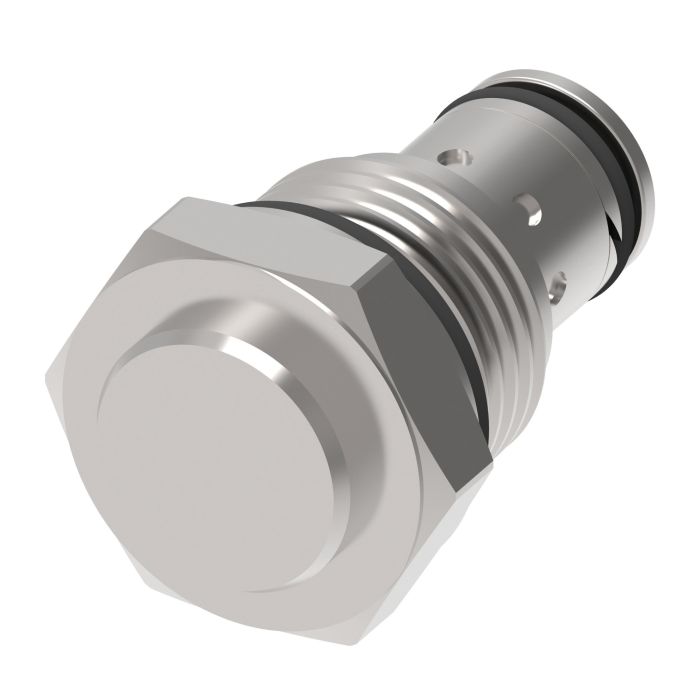

VICKERS-CV11-16-P-0-5

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, this poppet-style check valve is rated to 350 bar (5,000 psi) with a maximum flow capacity of 227 L/min (60 USgpm). The low spring settings contribute to high operational efficiency across a wide range of duty cycles. Typical applications include harvesters, refuse haulers, and general industrial hydraulic systems requiring reliable non-return flow control.

The VICKERS-CV11-16-P-0-5 is part of the Vickers by Danfoss CV1-16/CV11-16 series and is classified under Sicv Check Valves. It carries an EAR99 export classification, indicating no special export licensing is required for most destinations.

SKU: 301AA00022A

Supplier Part Number (MPN): 301AA00022A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Cavity
C-16-2
Dimensions
2.26 in L x 1.5 in W x 1.5 in H
Domestic/Import
Import
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Mounting Type
Screw-In
Nominal Size
#16
Number of Ports/Ways
2-Port
Pilot Piston Seal
Without Pilot Piston Seal
Port Type
Cartridge
Seal Material
Buna-N
Segment Code
A
Series
CV11-16 Series
Style
Poppet

Product Questions & Answers (2)

Question by: Lynn P on Jul 23, 2025, 4:25 PM
Wondering if this check valve would be a good fit for a refuse hauling setup?
Answer by: Customer Support on Jul 24, 2025, 9:25 PM
Application-wise, yes, this valve is listed as suitable for refuse haulers, along with harvesters and general industrial hydraulic systems.
Question by: Gary G on Jun 9, 2025, 3:31 PM
Got a harvester sittin' idle cause the check valve gave out, this the right kind to get it back runnin'?
Answer by: Customer Support on Jun 11, 2025, 6:04 AM
Poppet-style check valves like this one are a common fit for harvester hydraulic circuits. The CV11-16 series is built for exactly that kind of mobile equipment work, rated at 350 bar (5,000 psi) with a max flow of 227 L/min (60 USgpm). As long as those pressure and flow figures line up with what your machine calls for, and the port sizing matches the CV1-16/CV11-16 series spec, you should be back up and running without a headache.
