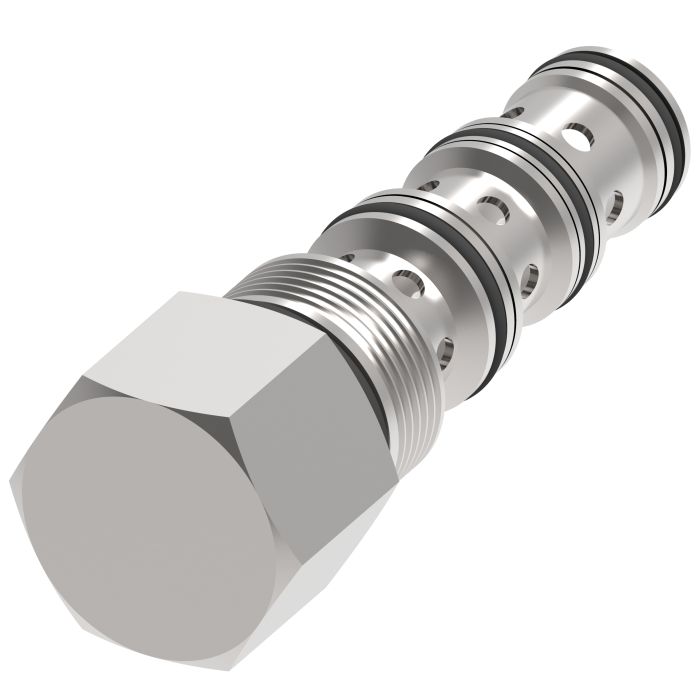

VICKERS PCS14-12N-0-160-00VALV

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic systems, the Vickers PCS14-12N-0-160-00VALV is a flow restrictor valve from the PCS14-12 series, built to handle demanding applications including harvesters and refuse haulers. With a rated flow of 58 litres per minute and a maximum pressure capacity of 350 bar (5,000 psi), it is suited to high-pressure circuits where precise flow management is required.

The PCS14-12 series balances compact construction with reliable performance across a broad range of mobile and industrial environments. Manufactured under the Vickers brand by Danfoss/Eaton, these valves are recognized for their economical footprint without compromising pressure or flow capability. The series supports flow up to 350 L/min (92 USgpm) at the platform level, making individual valve selection straightforward when matching circuit requirements.

SKU: 302AA00033A

Supplier Part Number (MPN): 302AA00033A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Compensated
Dimensions
4-1/2 in L x 1-1/4 in W x 1-1/4 in H
Domestic/Import
Import
Lead Time
80
Mounting Type
Screw-In
Nominal Size
#12
Number of Ports/Ways
4-Port
Seal Material
Buna-N
Segment Code
C
Series
PCS14-12 Series
Style
Flow Restrictor

Product Questions & Answers (1)

Question by: Wayne T on Dec 3, 2025, 9:22 PM
Reckon this'll hold up okay on a harvester running pretty much all day during the season?
Answer by: Customer Support on Dec 5, 2025, 7:07 PM
Designed for demanding mobile and industrial hydraulic systems, this flow restrictor valve is well-suited for continuous operation in applications like harvesters. It can handle pressures up to 5,000 psi and flows up to 58 liters per minute.
