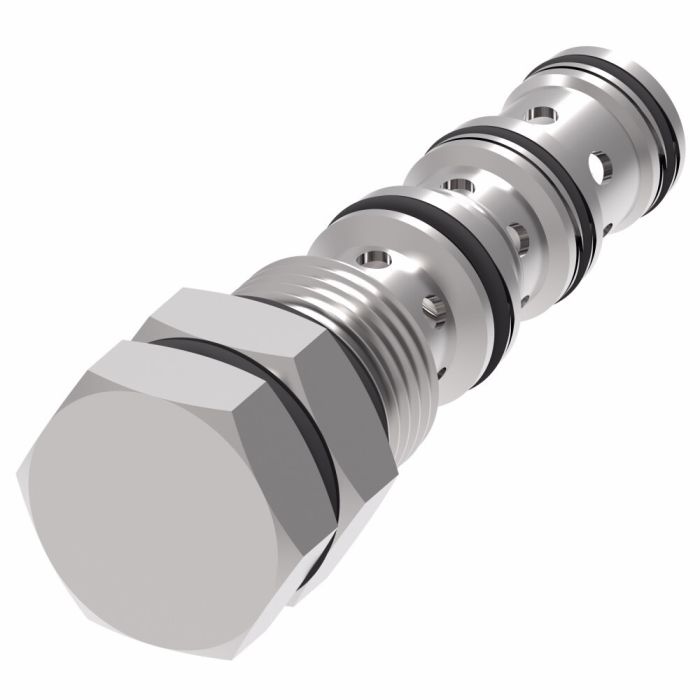

VICKERS MLV9-12-A-OL-0-00-00

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Vickers MLV9-12-A-OL-0-00-00 is a spool-style directional control valve rated for pressures up to 350 bar (5,000 psi) with a flow capacity of 60 litres per minute. Its compact form factor supports installation where space is limited, without compromising performance or reliability.

Suited for use in harvesters, refuse haulers, and a broad range of mobile and industrial hydraulic circuits, this valve offers the flexibility to integrate into varied system configurations. The MLV9-12-A series is built for consistent, economical service across applications where directional control and space efficiency are both priorities.

SKU: 304AA00008A

Supplier Part Number (MPN): 304AA00008A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting, Lever
Adjustment Type
Lever, Spring Centered
Cavity
C-12-4
Detent Option
With Detent
Dimensions
1.25 in L x 1.98 in W x 9 in H
Domestic/Import
Import
Function
Directional, Relief, Flow Valves
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
4-Port, 4-Way
Number of Positions
3
Port Type
Cartridge
Seal Material
Buna-N
Series
MLV9-12-A Series
Style
Spool

Product Questions & Answers (1)

Question by: Brent P on Aug 13, 2025, 12:37 PM
Got a harvester that needs a directional valve and space is real tight around the hydraulic block. This one rated for that kind of work, and will it fit where things are cramped?
Answer by: Customer Support on Aug 15, 2025, 6:04 AM
Harvesters are actually one of the listed applications for this valve, so it's well suited for that kind of machine. On the space question, the MLV9-12-A series was built with a compact form factor specifically to handle installs where clearance is limited. You get full 350 bar and 60 litre per minute capability without needing a bulky housing to get there, so tight quarters on the hydraulic block shouldn't be a dealbreaker.
