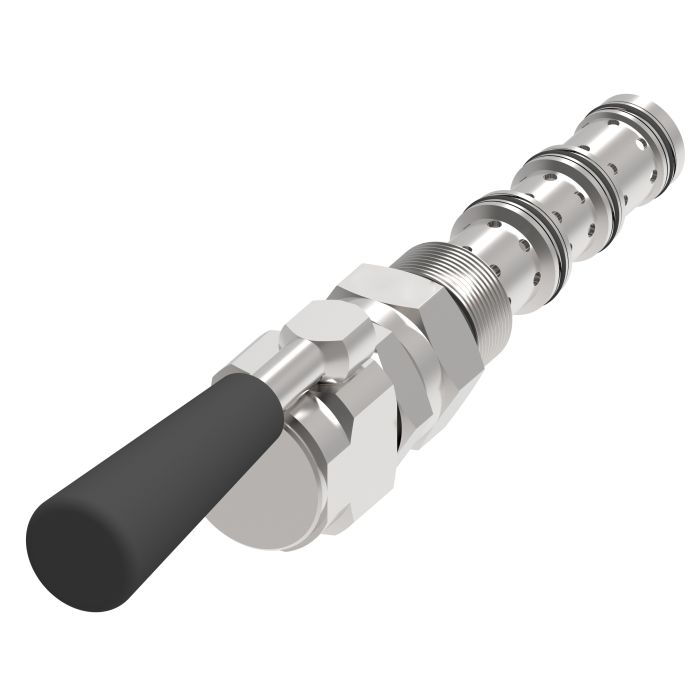

VICKERS MLV9-12-B-OL-0-00-00

Ask A Question

Description & Features

Vickers MLV9-12-B-OL-0-00-00 directional control valves are designed for demanding mobile and industrial applications, including harvesters and refuse haulers. Known for their reliability and economic design, these valves deliver optimal performance with a pressure rating of up to 350 bar (5000 psi) and a flow rate of 60 liters per minute. Compact and flexible, they are ideal for systems where space is limited. The spool style ensures precise control, while the robust construction guarantees durability under high-pressure conditions.

Manufactured by Vickers, a trusted name in hydraulic solutions, these directional control valves are engineered to meet the rigorous demands of various industries. With a maximum flow capacity of 265 L/min (70 USgpm), they provide efficient fluid control in a compact form factor, maximizing system performance while minimizing footprint. These valves are a reliable choice for enhancing hydraulic system capabilities in both mobile and industrial environments.

SKU: 304AA00009A

Supplier Part Number (MPN): 304AA00009A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting, Lever
Adjustment Type
Lever, Spring Centered
Cavity
C-12-4
Detent Option
With Detent
Dimensions
9 in L x 1-1/4 in W x 1-1/4 in H
Domestic/Import
Import
Function
Directional, Relief, Flow Valves
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
4-Port, 4-Way
Number of Positions
3
Port Type
Cartridge
Seal Material
Buna-N
Series
MLV9-12-B Series
Style
Spool

Product Questions & Answers (2)

Question by: Floyd A on Dec 20, 2025, 1:34 PM
Will this valve work okay in a system that sees pretty high pressure, like up near 5000 psi sometimes?
Answer by: Customer Support on Dec 21, 2025, 3:18 PM
This Vickers MLV9 valve is rated to handle pressures up to 350 bar, which is about 5000 psi, so it should be suitable for your high-pressure system.
Question by: Jerry C on Aug 6, 2025, 6:32 PM
runs up to 5000 psi, but what's the actual flow rate this valve is rated for in regular operation?
Answer by: Customer Support on Aug 8, 2025, 9:57 AM
For day-to-day operation, the rated flow is 60 liters per minute. The 265 L/min (70 USgpm) figure is the maximum capacity the valve can handle at peak, but 60 L/min is the working flow rate you'd plan around when sizing this into a hydraulic circuit.
