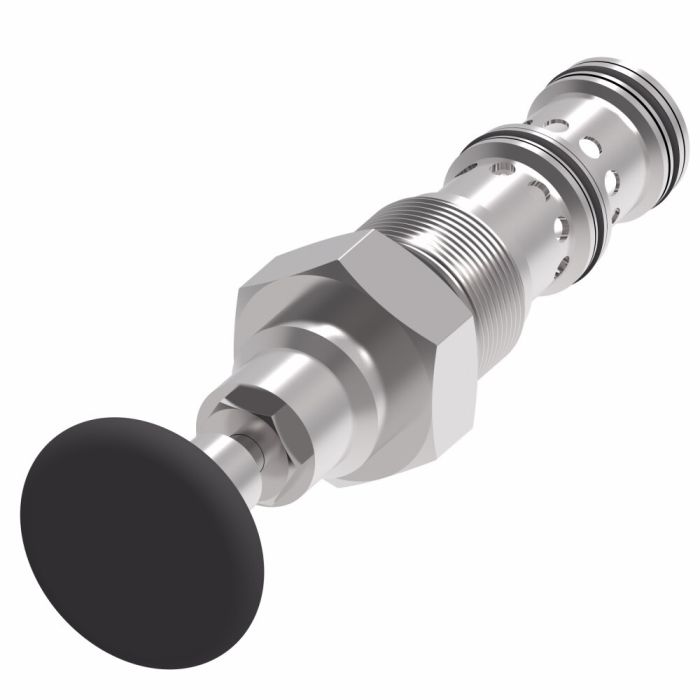

main product photo

VICKERS-MSV2-12-E-0

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Vickers MSV2-12-E-0 is a directional control valve built to handle pressures up to 350 bar (5,000 psi) and flow rates up to 265 L/min (70 USgpm). The MSV2-12 Series delivers a compact, space-efficient form factor suited to installations where mounting real estate is limited, without compromising performance or reliability.

Typical applications include harvesters, refuse haulers, and a range of mobile and stationary hydraulic systems. The valve's design emphasizes flexibility across configurations, making it a practical choice for both original equipment and replacement requirements. A rated flow of 38 litres per minute supports mid-range circuit demands within the broader MSV2-12 Series range.

SKU: 304AA00161A

Supplier Part Number (MPN): 304AA00161A

Specifications

Brand
Vickers by Danfoss
Actuation Option
Emergency Stop Actuation
Actuator Type
Direct Acting, Push/Pull
Cavity
C-12-3
Detent Option
Without Detent
Dimensions
5.35 in L x 1.5 in W x 1.5 in H
Domestic/Import
Import
Function
Directional, Relief, Flow Valves
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
3-Port, 3-Way, 4-Way
Number of Positions
2
Port Type
Cartridge
Seal Material
Buna-N
Series
MSV4-12 Series

Product Questions & Answers (1)

Question by: Ronnie E on Oct 8, 2025, 10:56 AM
Got a harvester sittin' idle cause the directional valve gave out, this the kind of unit that'd slot in as a replacement for mobile equipment like that?
Answer by: Customer Support on Oct 10, 2025, 6:07 AM
Harvesters are actually one of the primary applications this valve was built around, so yes, it fits right into that kind of mobile equipment context. It handles up to 350 bar (5,000 psi) and flows up to 265 L/min (70 USgpm), which covers a solid range of working circuit demands. The rated flow for this specific unit sits at 38 litres per minute, so just make sure that lines up with what your circuit needs before ordering. The MSV2-12 Series was designed with compact installations in mind, so if space around the valve bank is tight, that works in your favor too.
