Mjic X Bsp Banjo

Description & Features

Configured as a 90° elbow, this steel Mjic X BSP Banjo provides a right-angle transition between a 7/16-20 UNF male JIC connection (1/4") on one end and a G 1/4-19 male BSPP connection (1/4") on the other. The banjo-style design suits applications where rotational positioning or tight routing geometry is required within a hydraulic circuit.

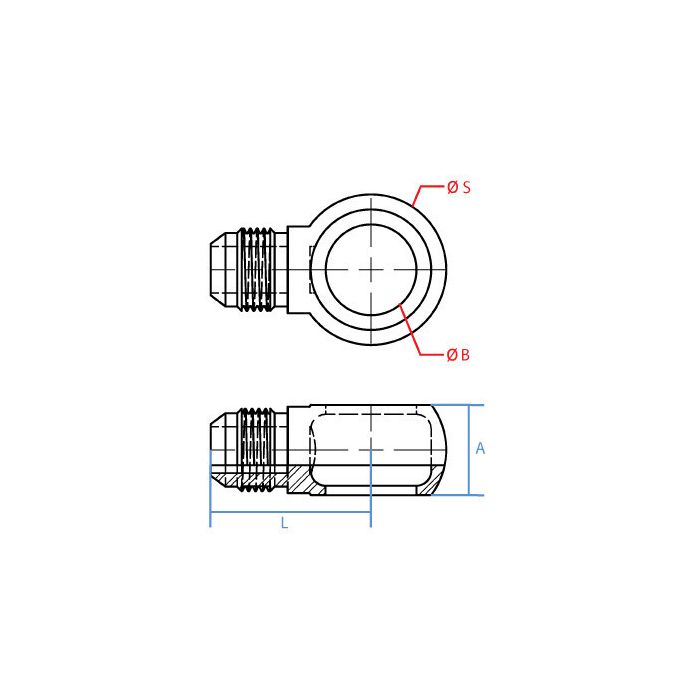

Manufactured by Adaptall, the fitting measures 28mm in overall length with a 24mm S dimension and 14mm A dimension. Steel construction offers solid durability for general industrial hydraulic use. The dual-standard thread compatibility, JIC on one side and BSPP on the other, makes this fitting well-suited for connecting equipment or assemblies that use mixed international thread standards.

SKU: 3059-04-04

Supplier Part Number (MPN): 3059-04-04

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP Banjo	Dimension Standards BS 5200, SAE J514	Dimensions 14 mm H	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	s Misc Dimensions 24 mm	Series 3059 Series	Thread Size 7/16-20 x 1/4-19

Product Questions & Answers (1)

Question by: Hank M on Apr 23, 2025, 6:24 AM

Got a piece of equipment running G 1/4 BSPP ports and I need to tie into a JIC line, this the right fitting to bridge that gap?

Answer by: Customer Support on Apr 24, 2025, 9:34 PM

For that exact crossover, yes. One end of this Adaptall fitting is a 7/16-20 UNF male JIC (1/4") and the other is a G 1/4-19 male BSPP, so it's built specifically to connect those two thread standards in one piece. The 90 degree elbow shape also helps when your routing doesn't have room for a straight inline connection.
