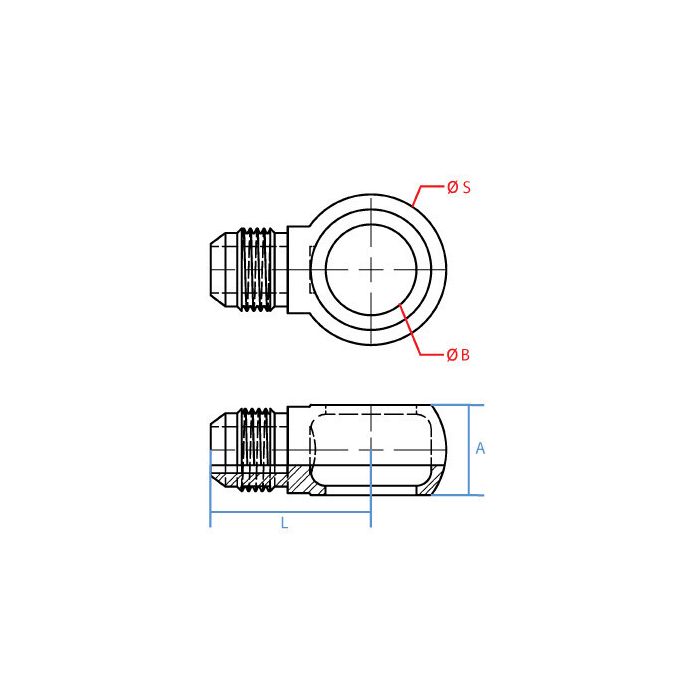

main product photo

Mjic X Bsp Banjo

Ask A Question

Description & Features

Optimize industrial fluid handling with this robust solution from Adaptall America. The steel construction ensures durability, catering to demanding environments. The 90deg; elbow design facilitates connections in confined spaces.

With a 24mm size, the 9/16 - 18 UNF male JIC Side 1 pairs seamlessly with the G 1/4 - 19 male BSPP Side 2. The dimensions include a 15mm and 28mm length, streamlining your assembly process.

Engineered for reliability, this component features no adjustability to maintain precise specifications. Ideal for various industrial applications, it supports efficient system configurations without additional sealing requirements.

Supplier Part Number: 3059-06-04

Specifications

a Dimensions
15 mm
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP Banjo
Dimension Standards
BS 5200, SAE J514
Dimensions
14 mm H
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
s Misc Dimensions
24 mm
Series
3059 Series
Thread Size
9/16-18 x 1/4-19

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Joyce H on Jun 8, 2025, 9:49 AM
trying to swap a fitting on a tight bracket, is this one the 90 degree banjo with 9/16-18 jic on one side and g 1/4-19 bspp on the other?
Answer by: Customer Support on Jun 9, 2025, 1:23 PM
For a tight-spot connection, this is a 90° elbow banjo adapter with a 9/16 - 18 UNF male JIC end on Side 1 and a G 1/4 - 19 male BSPP end on Side 2.
Question by: Danny H on Jan 15, 2026, 9:25 PM
Got a tight spot on a hydraulic line where I need to tie into a BSPP port, will this fitting bridge the gap between that and a JIC side without needing extra sealant or adapters?
Answer by: Customer Support on Jan 17, 2026, 6:14 AM
Steel construction and a 90 degree elbow profile make this a solid pick for tight routing situations. The male JIC side runs a 9/16-18 UNF thread at 3/8 inch, and the male BSPP side is G 1/4-19 at a quarter inch. No additional sealing is required, and there's no adjustability built in, so thread engagement and torque are what lock everything in place. One fitting, two thread standards, no extras needed.
Question by: Gary C on Jan 15, 2026, 7:49 AM
How about continuous use? Will this banjo fitting hold up in a hydraulic system that's running pretty much all the time?
Answer by: Customer Support on Jan 17, 2026, 6:05 AM
Designed for demanding industrial environments, the steel construction of this Adaptall banjo fitting should provide good durability under continuous use in a hydraulic system.
