Mjic X Bsp Banjo

Ask A Question

Description & Features

The Mjic X Bsp Banjo is expertly designed for specialized industrial use, offering reliable performance in various settings. Manufactured by Adaptall America, this high-quality steel fitting features a 90deg; elbow shape.

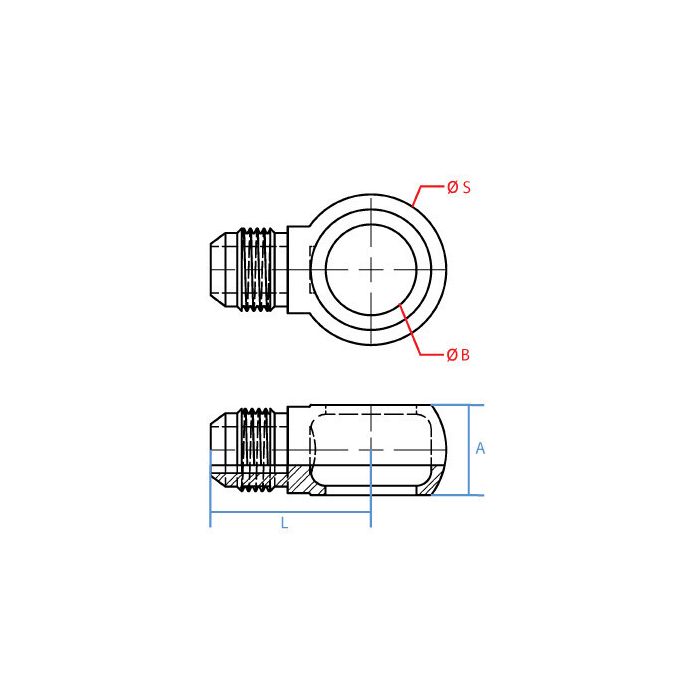

This fitting has a 9/16 - 18 UNF male JIC connection on one end and a G 3/8 - 19 male BSPP connection on the other, making it versatile for different requirements. The dimensions include an 18mm A Misc, 3/8 B Misc, and 28mm S Misc.

For added convenience, the fitting measures 30mm in length. This product is not adjustable and does not include additional components such as a battery, blades, or case. Furthermore, elements like check valves, thread sealants, and remote controls are not part of the design, ensuring a straightforward and robust solution.

Supplier Part Number: 3059-06-06

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP Banjo
Dimension Standards
BS 5200, SAE J514
Dimensions
18 mm H
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
s Misc Dimensions
28 mm
Series
3059 Series
Thread Size
9/16-18 x 3/8-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Debbie P on Dec 31, 2025, 9:43 AM
got a hose with 9/16-18 JIC on it. is this the right banjo to tie into a G 3/8-19 BSPP port, or am i mixing stuff up
Answer by: Customer Support on Jan 1, 2026, 1:00 PM
For that combination, it matches up as a JIC male on one side and a BSPP male on the other. Side 1 is 9/16 - 18 UNF male JIC and side 2 is G 3/8 - 19 male BSPP, both in 3/8 inch size.
Question by: Joyce W on Feb 21, 2026, 3:26 PM
Got a piece of equipment with a 3/8 BSPP port on it and need to tie into a JIC line, this fitting work for that?
Answer by: Customer Support on Feb 23, 2026, 7:00 AM
That's what this one's built for. One end is a 9/16-18 UNF male JIC and the other is a G 3/8-19 male BSPP, both in 3/8 size. The 90 degree elbow shape helps when you're working in a tight spot and need to change direction on the line without fighting the hose routing.
