Mjic X Bsp Banjo

Description & Features

This high-quality 90° elbow adapter is precisely engineered for industrial applications requiring reliable hydraulic connections. Manufactured from durable steel, it features a seamless transition between a 3/4 - 16 UNF male JIC on Side 1 and a G 1/2 - 14 male BSPP on Side 2, both sized at 1/2". These connections ensure compatibility with a variety of hydraulic systems, providing a secure and efficient flow path.

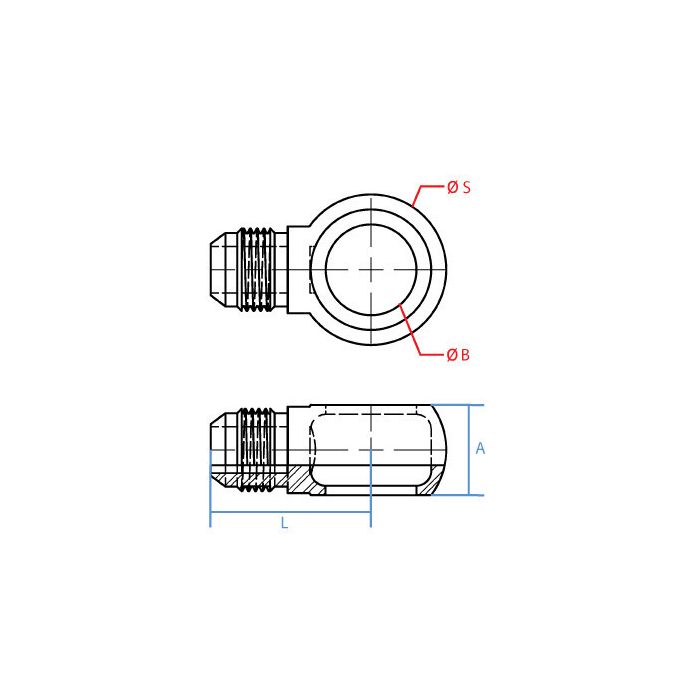

With an overall length of 36mm, the Mjic X BSP Banjo adapter is designed for use in tight spaces without sacrificing performance. Its robust construction and precise machining make it suitable for demanding environments, ensuring long-lasting reliability. The 22mm and 35mm dimensions further enhance its adaptability across various industrial settings, supporting efficient fluid transfer in complex hydraulic systems.

SKU: 3059-08-08

Supplier Part Number (MPN): 3059-08-08

Alternate Part Numbers: MI-07760323, MINO-03671X13672

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPP Banjo	Dimension Standards BS 5200, SAE J514	Dimensions 22 mm H	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	s Misc Dimensions 35 mm	Series 3059 Series	Thread Size 3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Hubert B on Jul 22, 2025, 4:59 PM

got a hose end that’s 3/4-16 UNF JIC male on one side and i need to land into a G 1/2-14 BSPP port, is this the right banjo elbow for that?

Answer by: Customer Support on Jul 24, 2025, 2:58 PM

For that combo, it’s a match. Side 1 is a 3/4-16 UNF male JIC and Side 2 is a G 1/2-14 male BSPP, and both ends are the 1/2 inch size.
