Hose Barb X Bsp Banjo Low Psi

Description & Features

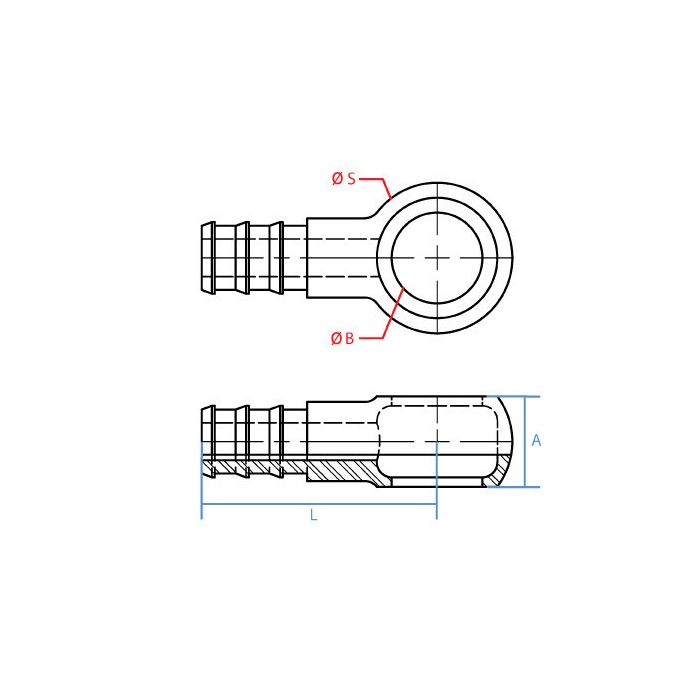

This 90° elbow Adaptall fitting features a hose barb on one end and a 3/8" BSPP male connection on the other. Designed for low-pressure applications, this Hose Barb X Bsp Banjo Low Psi has a 3/8" D diameter and an 18mm Adaptall A Misc dimension. The overall length (L Length) is 42mm, and the S Misc dimension is 28mm.

Constructed of steel, this fitting provides a secure and reliable connection. It is suitable for various hydraulic applications requiring a 90-degree turn between a hose and a BSPP port.

SKU: 3059HB-06-06

Supplier Part Number (MPN): 3059HB-06-06

Specifications

Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Barbed, Male BSP	Connection Type 1 Hose Barbed	Connection Type 2 Male BSPP Banjo	Dimension Standards BS 5200, ISO 1179, ISO 12151, ISO 8434-6	Dimensions 18 mm H	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	s Misc Dimensions 28 mm	Series 3059HB Series	Thread Size 9/16-18 x 3/8-19

Product Questions & Answers (3)

Question by: Sherry T on Mar 18, 2026, 5:02 PM

got a 3/8 BSPP port on a small hydraulic manifold and need to run a hose off it at a right angle, this the fitting that'd work for that?

Answer by: Customer Support on Mar 20, 2026, 9:32 AM

Yeah, that setup is exactly what this fitting handles. One end is a 3/8 inch hose barb, the other threads into a 3/8 inch BSPP male port, and the whole thing bends at 90 degrees. Total length runs 42mm, so it's a fairly compact piece. Just keep in mind it's rated for low-pressure use, so if your manifold runs high system pressure you'd want something else. For low-pressure hydraulic lines making a right-angle turn into a BSPP port, it fits the bill.

Question by: Roger M on Jul 10, 2025, 4:45 PM

got a hose line that needs to make a tight 90 into a port, is this the kind of fitting for that

Answer by: Customer Support on Jul 12, 2025, 6:14 AM

For a right angle turn between a hose and a BSPP port, this fitting matches that setup. One end is a hose barb, and the other end is a 3/8 inch BSPP male connection (G 3/8 - 19) in a 90 degree elbow shape.

Question by: Connie M on Dec 2, 2025, 11:41 AM

What kind of pressure can this banjo fitting handle?

Answer by: Customer Support on Dec 4, 2025, 10:29 AM

This fitting is designed for low-pressure applications, so it's best to keep that in mind when selecting it for your hydraulic system.
