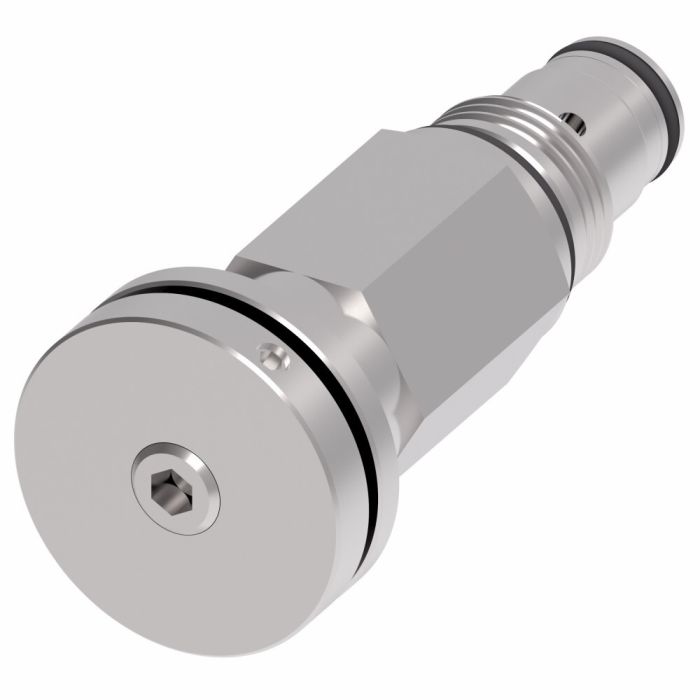

main product photo

VICKERS-FAR1-10V-K-0-3

Ask A Question

Description & Features

The VICKERS-FAR1-10V-K-0-3 is a pressure-compensated flow control valve with free reverse flow, designed for mobile and industrial applications, including use in harvesters and refuse haulers.

This Vickers by Danfoss / Eaton FAR1-10 Series flow control valve offers a balance of pressure and flow in a reliable, economical, and compact design. It handles a flow rate of 38 liters per minute and supports a maximum pressure of 350 bar (5000 psi) and 350 L/min (92 USgpm).

SKU: 305AA00288A

Supplier Part Number (MPN): 305AA00288A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pressure Compensated
Dimensions
3.65 in L x 1.5 in W x 1.5 in H
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
FKM
Series
FAR1-10 Series
Style
Pressure Compensated with Free Reverse Flow

Product Questions & Answers (2)

Question by: Rusty R on Mar 24, 2026, 8:29 AM
Hey, can this flow control valve handle the kind of pressure you find in heavy-duty farm equipment?
Answer by: Customer Support on Mar 25, 2026, 9:26 AM
It certainly can. This Vickers valve is rated up to 5000 psi, so it's well-suited for the hydraulic demands of harvesters and other tough mobile applications.
Question by: Dale C on May 22, 2025, 12:13 PM
Flow rate on this one says 38 liters per minute -- is that the controlled output rate, or is that the max the valve will pass in reverse flow?
Answer by: Customer Support on May 24, 2025, 7:00 AM
The 38 liters per minute figure is the controlled flow rate through the valve under normal operation. Reverse flow runs free on this design, meaning it bypasses the flow control element and is not restricted to that 38 L/min figure. The maximum system capacity is rated at 350 L/min (92 USgpm) at up to 350 bar (5000 psi), so reverse flow can move substantially more volume when the application demands it.
