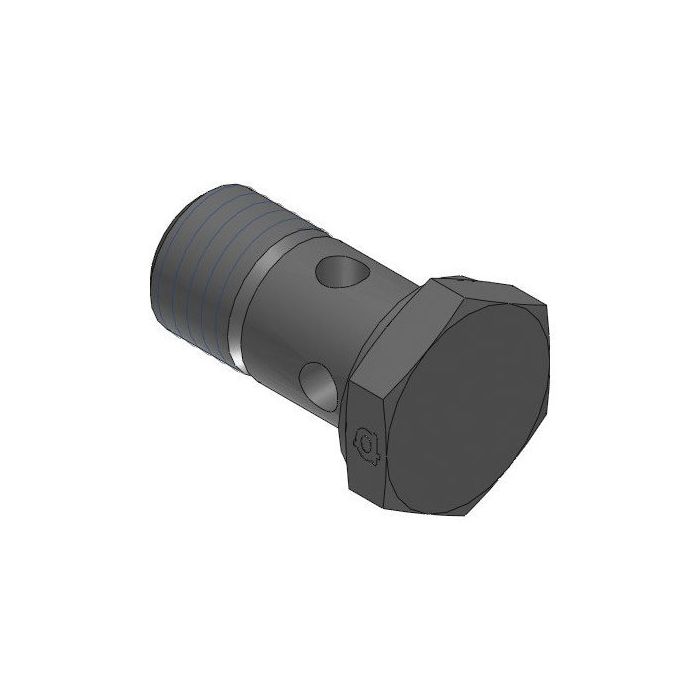

main product photo

Metric Banjo Bolt M10X1.50

Ask A Question

Description & Features

Manufactured from steel, this M10 x 1.5 metric threaded banjo bolt from Adaptall is a compact fitting component used in hydraulic line connections where a hollow-bolt-style fluid passage is required. With a 14mm wrench width and an overall length of 24mm (L1), it is sized for tight installations where space is limited.

The Metric Banjo Bolt M10X1.50 is compatible with standard banjo fittings and sealing washers at the M10 x 1.5 thread pitch, making it a common choice for connecting hydraulic hose ends and rigid lines to ports on pumps, motors, cylinders, and manifolds. As an Adaptall component, it is designed to work within their modular fitting system.

SKU: 3068-10-150

Supplier Part Number (MPN): 3068-10-150

Specifications

Brand
adapt-all
Connection Type
Male Metric
Connection Type 1
Male Metric
Dimension Standards
DIN 7631, ISO 6149, ISO 9974
Dimensions
24 mm L
Finish
Zinc-Plated
Fitting Type
Banjo Bolt
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
3068 Series
Thread Size
M10x1.5

Product Questions & Answers (3)

Question by: Keith P on Aug 19, 2025, 9:48 PM
bolt's only 24mm long, will that be enough thread engagement for a standard banjo fitting on a hydraulic motor port?
Answer by: Customer Support on Aug 21, 2025, 6:39 AM
At 24mm overall length with an M10 x 1.5 thread pitch, there's enough length to seat properly through a standard banjo fitting eye and engage the port threads on most hydraulic motors and similar components. The L2 dimension comes in at 19mm, which reflects the usable thread and body length below the head. For tight port installations that's a pretty common size range, and this bolt is built to work with standard banjo fittings and sealing washers at that thread pitch. Just make sure you're pairing it with the correct crush washers on both sides of the banjo eye for a proper seal.
Question by: Bonnie C on Mar 12, 2026, 8:26 PM
got a banjo fitting with an M10 x 1.5 thread, is this the right bolt for it
Answer by: Customer Support on Mar 14, 2026, 2:06 PM
With an M10 x 1.5 metric male thread, it matches standard banjo fittings and sealing washers that use that same M10 x 1.5 pitch.
Question by: Gary K on Apr 13, 2025, 9:46 AM
Reckon this banjo bolt will fit my M10 ports alright? Just wanna make sure before I order a bunch.
Answer by: Customer Support on Apr 15, 2025, 7:58 AM
This Adaptall banjo bolt is designed to fit any standard banjo fitting and sealing washer sized for an M10 x 1.5 thread pitch.
