Metric Banjo Bolt M18X1.50

Description & Features

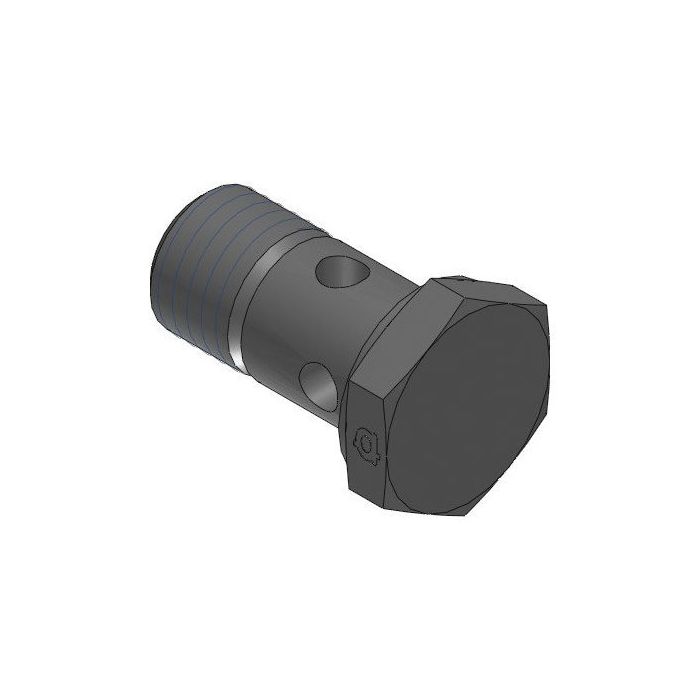

Manufactured from steel, this M18 x 1.5 metric threaded banjo bolt is designed for use in hydraulic and fluid circuit assemblies where a compact, low-profile connection is required. The male metric thread interfaces reliably with standard banjo fittings, allowing fluid flow through the bolt's cross-drilled passage.

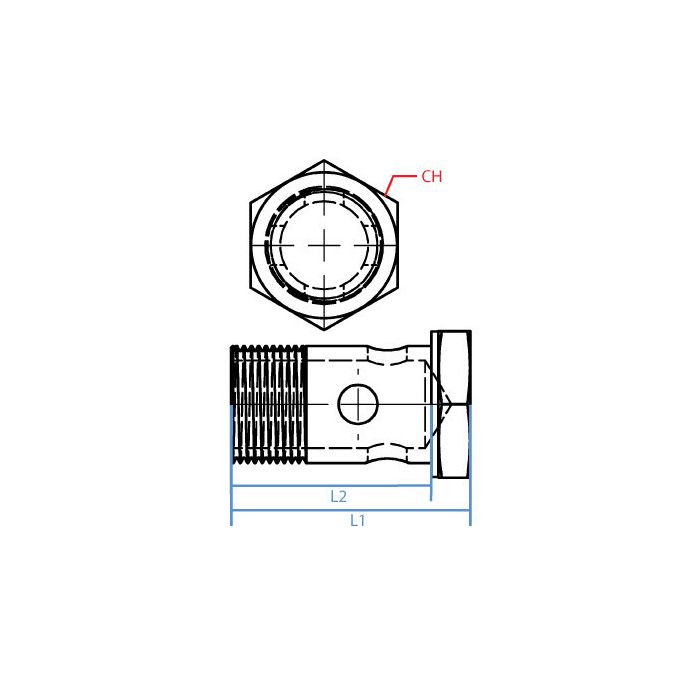

The Metric Banjo Bolt M18X1.50 is an Adaptall component with an L1 length of 44mm, an L2 length of 36mm, and a 24mm across-flats width, dimensions suited to a range of medium-duty hydraulic circuit applications. Its steel construction provides the mechanical strength needed for pressurized fluid connections in industrial equipment.

Alternate part numbers for cross-reference: C1FM56, F15M18X1.5, MI-08748830, MINO-03671X98023

SKU: 3068-18-150

Supplier Part Number (MPN): 3068-18-150

Alternate Part Numbers: C1FM56, F15M18X1.5, MI-08748830, MINO-03671X98023

Specifications

CH Width 24mm	L1 Length 44mm	L2 Length 36mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size 18mm	Side 1 Type Metric	Alternate Part Numbers Alternate Part Number C1FM56, Alternate Part Number F15M18X1.5, Alternate Part Number MI-08748830, Alternate Part Number MINO-03671X98023	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3068-18-150	Product Weight 0.14 lbs

Product Questions & Answers (3)

Question by: Larry M on Nov 2, 2025, 4:34 PM

got a banjo fitting with an M18 x 1.5 thread, is this the right bolt for it?

Answer by: Customer Support on Nov 4, 2025, 8:12 AM

For an M18 x 1.5 banjo setup, this bolt matches that male metric thread callout and is made to interface with standard banjo fittings. It also has a cross-drilled passage so fluid can flow through the bolt like a typical banjo connection.

Question by: Stan E on Mar 8, 2026, 8:09 AM

got an old banjo fitting on a tractor hydraulic line, looks like it takes an M18 thread, this bolt gonna fit that up right?

Answer by: Customer Support on Mar 10, 2026, 6:14 AM

M18 x 1.5 is the thread spec on this one, so as long as your fitting is cut to that same pitch and size, it should thread right in. The bolt runs 44mm on the overall length with a 36mm thread engagement length, and the hex is 24mm across the flats. Worth confirming those dimensions match what you're pulling off before you order.

Question by: Curt B on Sep 5, 2025, 8:13 AM

Just want to make sure this banjo bolt will fit my setup. It's a M18 x 1.5 thread, right?

Answer by: Customer Support on Sep 7, 2025, 6:12 AM

Correct, this banjo bolt has M18 x 1.5 metric threads. It's designed to interface reliably with standard banjo fittings that match those dimensions.
