Metric Banjo Bolt M22X1.50

Description & Features

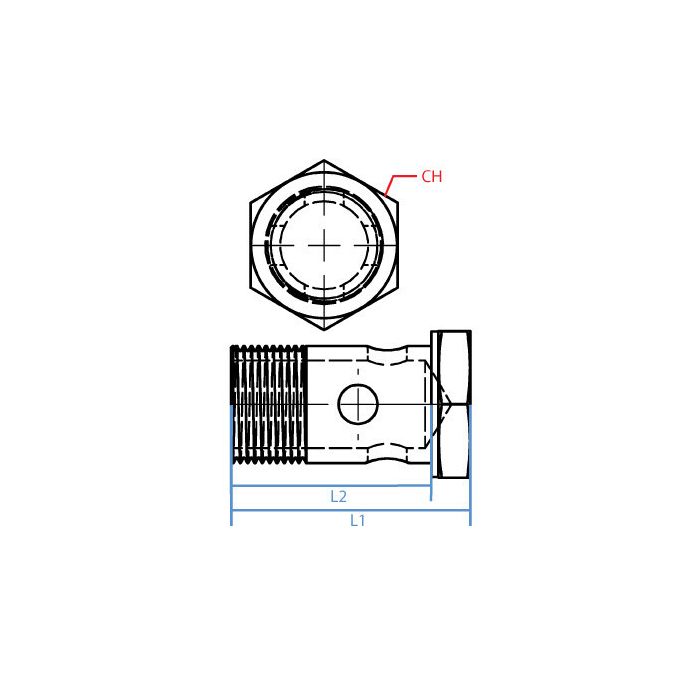

Manufactured from steel, this M22 x 1.5 metric threaded banjo bolt is designed for use in hydraulic fluid line connections where a hollow, cross-drilled bolt is required to allow flow through a banjo fitting. The Metric Banjo Bolt M22X1.50 from Adaptall features a 27mm wrench width and an overall length of 46mm, with an L2 measurement of 38mm.

Suited for metric hydraulic assemblies requiring a male M22 x 1.5 thread, this component integrates with standard banjo fittings across a range of mobile and industrial hydraulic circuits.

SKU: 3068-22-150

Supplier Part Number (MPN): 3068-22-150

Alternate Part Numbers: C1FM57, F15M22X1.5

Specifications

CH Width 27mm	L1 Length 46mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size 22mm	Side 1 Type Metric	Alternate Part Numbers Alternate Part Number C1FM57, Alternate Part Number F15M22X1.5	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3068-22-150	Product Weight 0.22 lbs

Product Questions & Answers (2)

Question by: Phil R on Jul 14, 2025, 10:51 AM

got a banjo fitting setup on a hydraulic line, is this the kind of bolt that lets fluid pass through the bolt itself?

Answer by: Customer Support on Jul 15, 2025, 4:14 PM

Built as a hollow, cross-drilled banjo bolt, it allows hydraulic fluid to flow through the bolt and into a banjo fitting, which is what you need for banjo-style hydraulic line connections.

Question by: Neil K on Apr 29, 2025, 6:06 AM

Trying to figure out the wrench size on this before I order, what size do I need to torque it down?

Answer by: Customer Support on Apr 30, 2025, 10:20 AM

You'll need a 27mm wrench to seat this one. Overall length runs 46mm, with an L2 measurement of 38mm, so factor that in when you're checking clearance around the fitting in your assembly.
