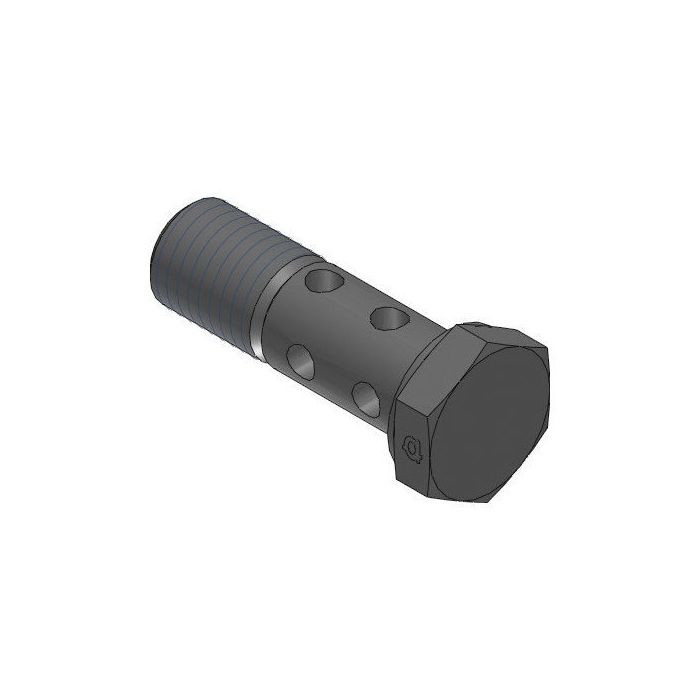

Male Metric Double Banjo Bolt

Ask A Question

Description & Features

Crafted from high-quality steel, the Male Metric Double Banjo Bolt is an essential component for hydraulic systems requiring secure and reliable connections. Featuring an M18 x 1.5 metric thread, this bolt is designed to deliver optimal performance in demanding industrial applications. Its double banjo configuration allows for fluid flow through two separate channels, enhancing versatility in complex hydraulic setups. The precise metric sizing ensures compatibility with a wide range of equipment, making it a valuable addition to any hydraulic assembly.

SKU: 3068DB-18-150

Supplier Part Number (MPN): 3068DB-18-150

Specifications

Brand
adapt-all
Connection Size 1
18 mm
Connection Type
Male Metric
Connection Type 1
Male Metric
Dimension Standards
DIN 7631, ISO 6149, ISO 9974
Dimensions
65 mm L
Finish
Zinc-Plated
Fitting Type
Banjo Bolt
Hex Size
24 mm
Material
Steel
Material Construction
Carbon Steel
Series
3068DB Series
Thread Size
M18x1.5

Product Questions & Answers (3)

Question by: Wes P on Feb 21, 2026, 8:54 PM
got a setup that needs two banjos stacked, is this the kind of bolt that lets fluid pass through both?
Answer by: Customer Support on Feb 23, 2026, 6:54 AM
With the double banjo configuration, fluid can flow through two separate channels, which is what you need when you are feeding through two banjo connections in one spot.
Question by: Duane C on Sep 19, 2025, 7:51 AM
Will this banjo bolt work on my hydraulic system that uses metric fittings? Just want to make sure before I order.
Answer by: Customer Support on Sep 20, 2025, 10:51 AM
This male metric double banjo bolt is specifically designed with an M18 x 1.5 metric thread to ensure compatibility with hydraulic systems using metric fittings. Its precise sizing should make it a suitable component for your assembly.
Question by: Rex P on Jun 28, 2025, 5:38 PM
part number 3068DB-18-150, is that the double banjo style or the single? want to make sure I'm ordering the right one before it shows up and I gotta send it back.
Answer by: Customer Support on Jun 30, 2025, 2:45 PM
That part number is the double banjo configuration. It runs fluid through two separate channels in a single bolt, so if your fitting point needs two lines connected at the same location, this is the one you want. The single banjo would be a different part entirely.
