Mjic X Metric Banjo

Description & Features

This high-quality hydraulic fitting features a 90° elbow design, expertly crafted from durable steel, making it suitable for demanding industrial environments. With a side 1 configuration of 7/16 - 20 UNF JIC male threads and a side 2 configuration of M8 x 1.0 metric male threads, it provides a reliable connection between different hydraulic components. The Mjic X Metric Banjo is designed for precise applications, ensuring a secure fit with its 1/4" size on side 1 and 8mm size on side 2. Its compact 25mm length and robust construction make it an ideal choice for setups requiring efficient space utilization and dependable performance.

Manufactured by Adaptall, this fitting is engineered to meet the rigorous demands of hydraulic systems, offering a seamless integration into various applications. The fitting’s distinct shape and size, including a 17mm width, enable it to accommodate specific mechanical requirements effectively. Whether used in maintenance or new installations, its compatibility with standard hydraulic systems ensures it can be readily incorporated into existing setups.

SKU: 3069-04-08

Supplier Part Number (MPN): 3069-04-08

Specifications

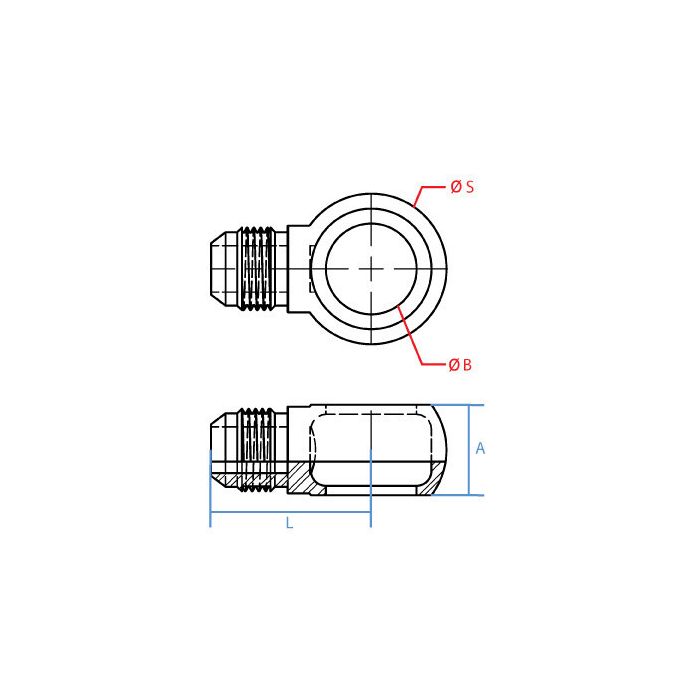

A Misc 9mm	B Misc 8mm	L Length 25mm	Adaptall Material Steel	S Misc 17mm	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M8 X 1.0	Side 2 Gender M	Side 2 Size 8mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069-04-08	Product Weight 0.04 lbs

Product Questions & Answers (1)

Question by: Vince H on Dec 6, 2025, 6:00 PM

trying to swap a fitting on an old hose, will this one match 7/16-20 jic on one end and m8x1.0 on the other?

Answer by: Customer Support on Dec 8, 2025, 9:10 AM

It has a 7/16-20 UNF JIC male on side 1 (1/4 inch size) and an M8 x 1.0 metric male on side 2 (8 mm size), so it is meant to join those two thread types in one elbow fitting.
