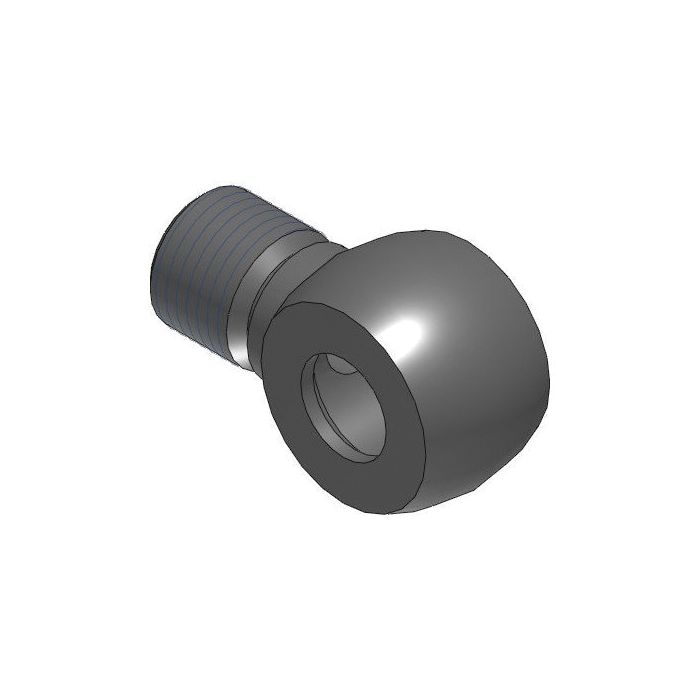

main product photo

Mjic X Metric Banjo

Ask A Question

Description & Features

Configured as a 90° elbow, this steel Mjic X Metric Banjo adapter connects a 1/4" male JIC fitting (7/16-20 UNF thread) on one end to a male M12 x 1.5 metric banjo on the other. The 90° geometry makes it well-suited for installations where straight-line routing is not practical and a directional change is needed within a tight envelope.

Manufactured by Adaptall, the adapter measures 26mm in overall length and is built from steel for durability in hydraulic circuit applications. With a 20mm across-flats dimension and 12mm banjo bore, it provides a reliable transition between JIC and metric banjo connections in a single compact component.

SKU: 3069-04-12

Supplier Part Number (MPN): 3069-04-12

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
12 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric Banjo
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Dimensions
12 mm H
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
s Misc Dimensions
20 mm
Series
3069 Series
Thread Size
7/16-20 x M12x1.5

Product Questions & Answers (1)

Question by: Randy S on Mar 20, 2026, 7:08 AM
trying to swap a 1/4 jic line over to a metric banjo, is this the one with 7/16-20 on one end and m12x1.5 on the other?
Answer by: Customer Support on Mar 21, 2026, 8:51 AM
On the JIC side, it uses a 1/4 inch male JIC with 7/16-20 UNF threads, and the other end is a male M12 x 1.5 metric banjo.
