Mjic X Metric Banjo

Description & Features

This high-grade steel 90deg; elbow fitting is engineered to offer dependable performance in demanding contexts. Designed by Adaptall America, it ensures compatibility with JIC and metric systems without the need for adjustments or electrical components.

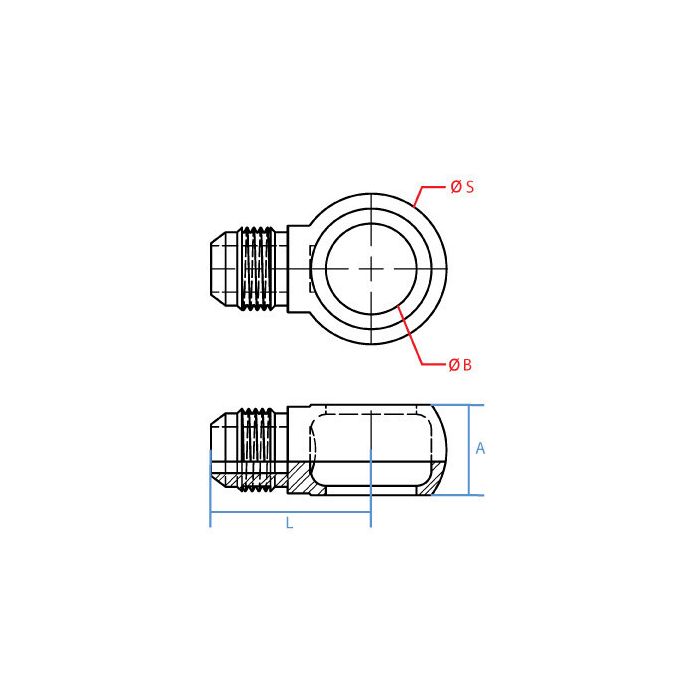

Featuring a 9/16 - 18 UNF male connection on one side, and a M14 x 1.5 male metric connection on the other side, this fitting is precise in its dimensions. The key measurements include a 15mm and 14mm miscellaneous measurement, along with a total length of 28mm and a 24mm miscellaneous measurement.

The Mjic X Metric Banjo is specifically designed for applications requiring a secure and accurate connection between JIC and metric threads.

Supplier Part Number: 3069-06-14

Specifications

a Dimensions 15 mm	Connection Size 1 3/8 in	Connection Size 2 14 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric Banjo	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Dimensions 14 mm H	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	s Misc Dimensions 24 mm	Series 3069 Series	Thread Size 9/16-18 x M14x1.5

Product Questions & Answers (2)

Question by: Bobby A on Jun 24, 2025, 6:27 PM

fitting's got a 90 degree angle on it, right? trying to route a line in a tight spot and need something that ain't gonna run straight through

Answer by: Customer Support on Jun 25, 2025, 8:24 PM

the elbow shape is built right into this fitting. It makes a full 90 degree turn, so if you're working around a bracket or trying to keep a hose from kinking in a cramped space, this thing handles that without needing an extra adapter in the mix. Total length on it is 28mm, so it's a compact unit.

Question by: Ralph B on Feb 3, 2026, 5:47 PM

Will this banjo fitting hold up okay in a hydraulic system running at, say, 2000 psi? Just wanna make sure it's tough enough for my setup.

Answer by: Customer Support on Feb 5, 2026, 7:41 AM

This fitting is constructed from high-grade steel, which provides the necessary durability for demanding hydraulic applications. While the specific pressure rating isn't listed, the steel build suggests it's suitable for systems requiring robust performance.
