Mjic X Metric Banjo

Description & Features

A 90° elbow configuration adapter, the Mjic X Metric Banjo connects a 1/2" Male JIC fitting (3/4–16 UNF thread) on one end to an M20 x 1.5 Male Metric Banjo on the other. The elbow geometry suits installations where routing at a right angle is required to avoid interference or manage line direction within tight assemblies.

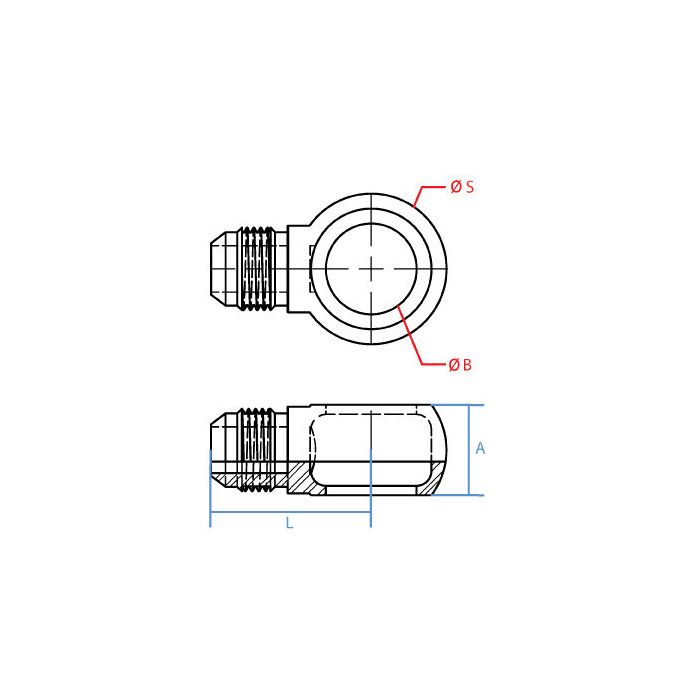

Manufactured from steel, this Adaptall fitting measures 35mm in overall length with a 35mm S dimension and 22mm A dimension, making it well-suited for compact hydraulic circuit connections. The metric banjo end accommodates 20mm bore fittings, while the JIC side provides compatibility with standard inch-based hydraulic lines and components.

SKU: 3069-08-20

Supplier Part Number (MPN): 3069-08-20

Specifications

Connection Size 1 1/2 in	Connection Size 2 20 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric Banjo	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Dimensions 22 mm H	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	s Misc Dimensions 35 mm	Series 3069 Series	Thread Size M20x1.5 x 3/4-16

Product Questions & Answers (1)

Question by: Peggy E on Sep 1, 2025, 6:02 PM

trying to swap a line over, is this the elbow that goes from a 1/2 JIC male to an M20 x 1.5 banjo bolt setup?

Answer by: Customer Support on Sep 3, 2025, 6:00 AM

For that kind of swap, it matches a 1/2 inch Male JIC on one side with a 3/4-16 UNF thread, and an M20 x 1.5 Male metric banjo on the other side sized for a 20 mm bore.
