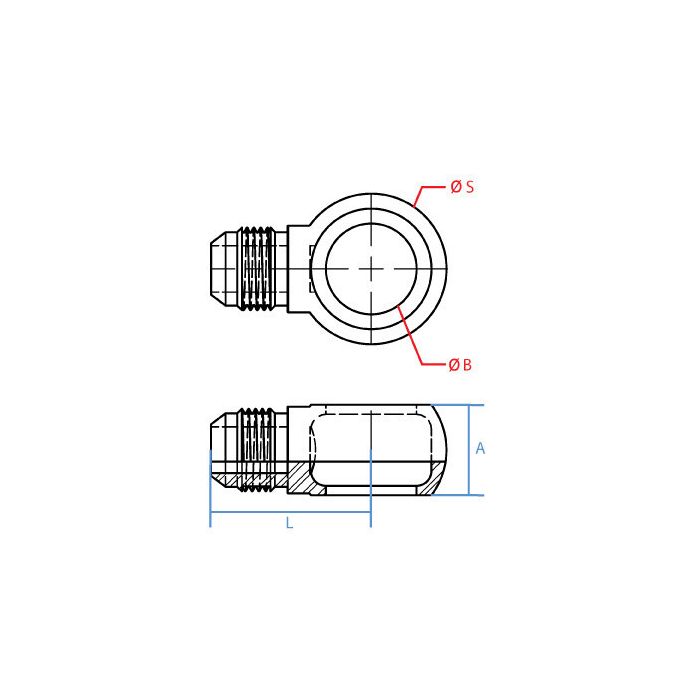

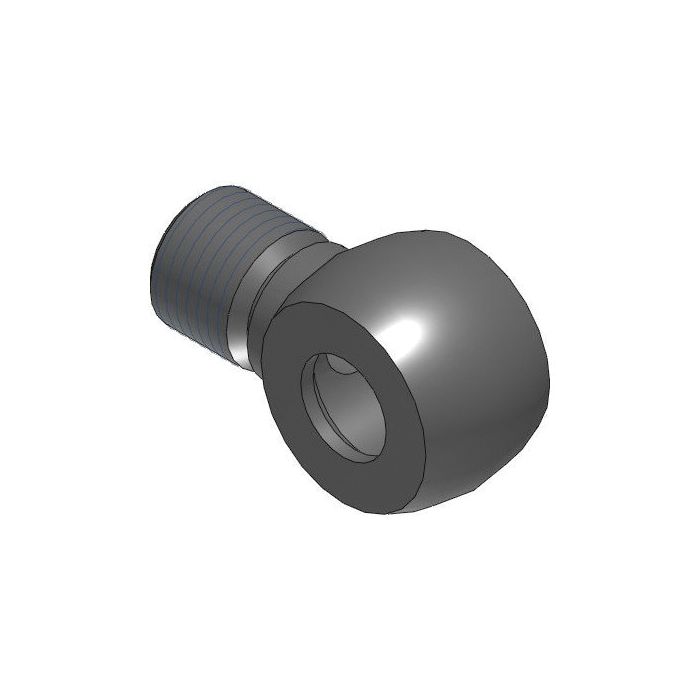

main product photo

Mjic X Metric Banjo

Ask A Question

Description & Features

Crafted from durable steel, the Mjic X Metric Banjo fitting is designed for precision and reliability in industrial hydraulic systems. It features a 90° elbow shape, providing flexibility in complex configurations. The fitting connects a 7/8 - 14 UNF male JIC on one side and a M22 x 1.5 male Metric on the other, allowing for seamless integration between different hydraulic components.

With a length of 38mm, this steel adapter is ideal for applications requiring robust and secure connections. The dual 22mm Adaptall Misc dimensions further ensure compatibility and ease of installation, making it a versatile choice for various industrial settings.

SKU: 3069-10-22

Supplier Part Number (MPN): 3069-10-22

Specifications

Brand
adapt-all
Connection Size 1
5/8 in
Connection Size 2
22 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric Banjo
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Dimensions
22 mm H
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
s Misc Dimensions
35 mm
Series
3069 Series
Thread Size
7/8-14 x M22x1.5

Product Questions & Answers (2)

Question by: Cody J on Oct 23, 2025, 9:30 PM
trying to hook a JIC line up to a metric port, is this the adapter that goes 7/8-14 UNF to M22x1.5?
Answer by: Customer Support on Oct 25, 2025, 2:21 PM
For bridging those two standards, it mates a 7/8 - 14 UNF male JIC end on one side to a M22 x 1.5 male Metric end on the other.
Question by: Danny C on Dec 8, 2025, 6:10 PM
Got a piece of equipment running M22 x 1.5 metric ports and need to tie into some JIC lines. This fitting work for that kind of crossover?
Answer by: Customer Support on Dec 10, 2025, 6:04 AM
That's what this one's built for. One end is a 7/8-14 UNF male JIC and the other is an M22 x 1.5 male metric, so it bridges those two thread standards without any adapters in between. The 90-degree elbow shape also gives you some room to work when your ports aren't pointing the right direction, which comes in handy on tighter installs.
