Mjic X Metric Banjo

Description & Features

This Adaptall fitting is a Mjic X Metric Banjo, featuring a 90° elbow shape and constructed from durable steel. It has a Side 1 JIC connection with a 7/8 - 14 UNF callout and a 5/8" size. The Side 2 Metric connection features a M24 X 1.5 callout and a 24mm size.

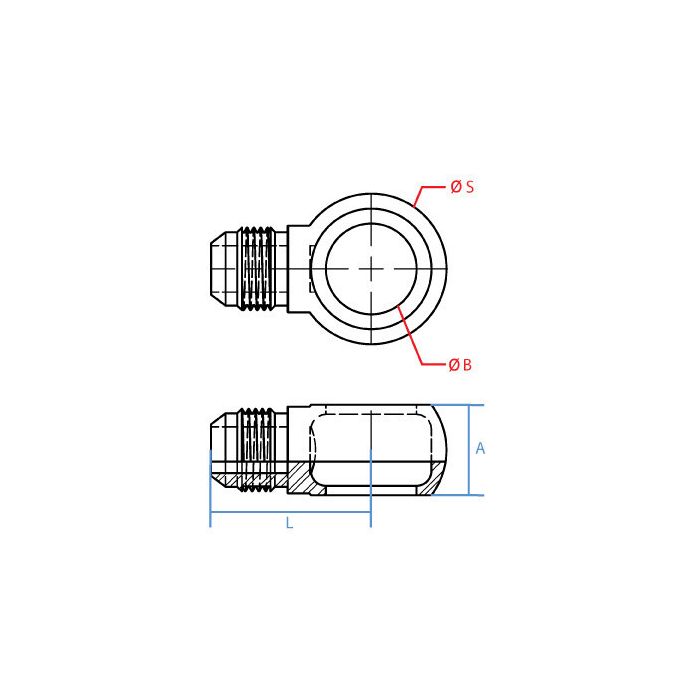

Additional dimensions include Adaptall A Misc at 25mm, Adaptall B Misc at 24mm, Adaptall L Length at 45mm, and Adaptall S Misc at 42mm.

SKU: 3069-10-24

Supplier Part Number (MPN): 3069-10-24

Specifications

Connection Size 1 5/8 in	Connection Size 2 24 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric Banjo	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Dimensions 25 mm H	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	s Misc Dimensions 42 mm	Series 3069 Series	Thread Size 7/8-14, M24x1.5

Product Questions & Answers (3)

Question by: Tammy P on Sep 16, 2025, 6:13 PM

I need a 24mm metric banjo fitting to go to a 5/8 JIC. Will this work?

Answer by: Customer Support on Sep 18, 2025, 12:58 PM

This Adaptall fitting is exactly that, a metric banjo to JIC, with a 24mm metric side and a 5/8" JIC side. Just double check your thread callouts to be sure they match the M24 X 1.5 and 7/8 - 14 UNF.

Question by: Tammy B on Apr 26, 2025, 5:39 PM

trying to swap a hose end out, is this the one that’s 7/8-14 jic on one side and m24x1.5 on the other?

Answer by: Customer Support on Apr 28, 2025, 6:32 AM

Fit comes down to the two thread callouts on the ends. Side 1 is a male JIC with a 7/8 - 14 UNF callout and listed as 5/8 inch size. Side 2 is a male metric banjo connection with an M24 x 1.5 callout and a 24 mm size.

Question by: Wes T on Dec 25, 2025, 10:25 AM

Got a metric banjo port on some equipment and need to know if the thread on that side is M24 x 1.5, that what this fitting uses?

Answer by: Customer Support on Dec 26, 2025, 9:32 PM

M24 x 1.5 is exactly what the metric banjo side runs on this one. The banjo end is 24mm. The other side connects with a 7/8-14 UNF male JIC, so as long as your hose or line terminates in a standard 5/8" JIC male fitting, you're set on both ends.
