Mjic X Metric Banjo

Description & Features

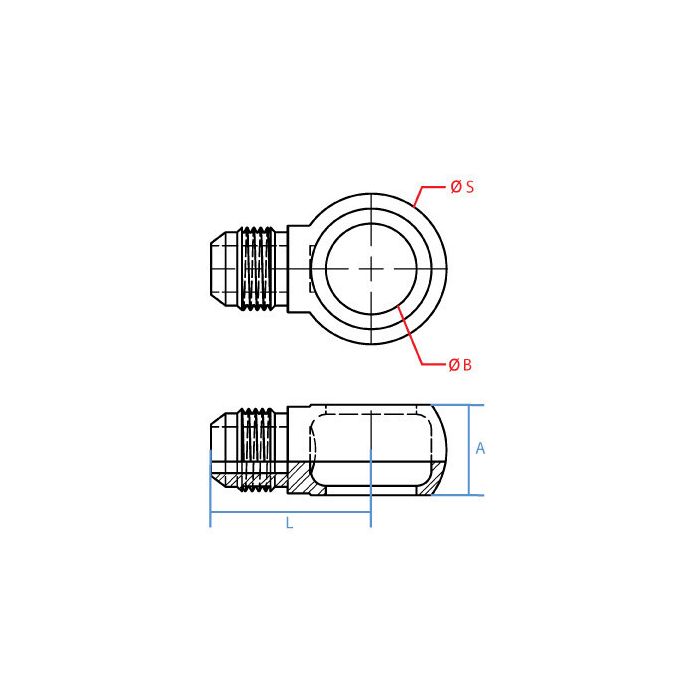

Configured as a 90° elbow, this steel Mjic X Metric Banjo adapter connects a 3/4" Male JIC fitting (1-1/16-12 UN thread) on one end to a Male Metric Banjo fitting (M26 x 1.5 thread) on the other. The right-angle geometry suits installations where routing constraints make an inline adapter impractical.

Manufactured by Adaptall, this adapter measures 48mm in overall length, with additional dimensional references of 29mm, 26mm, and 45mm across its profile. Steel construction provides durability suitable for hydraulic line connections in industrial and mobile equipment applications.

SKU: 3069-12-26

Supplier Part Number (MPN): 3069-12-26

Specifications

Connection Size 1 3/4 in	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric Banjo	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Dimensions 29 mm H	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	s Misc Dimensions 45 mm	Series 3069 Series	Thread Size 1-1/16-12 x M26x1.5

Product Questions & Answers (2)

Question by: Lynn S on Mar 11, 2026, 11:18 AM

What size is that banjo end? I need to make sure it fits my setup.

Answer by: Customer Support on Mar 12, 2026, 4:54 PM

This banjo fitting is designed for a M26 x 1.5 thread.

Question by: Vince C on Feb 16, 2026, 5:51 PM

trying to swap a hose end over, is this the 90 degree adapter that goes from 3/4 male JIC to an M26 x 1.5 male metric banjo?

Answer by: Customer Support on Feb 17, 2026, 9:29 PM

Built as a right angle steel adapter, it has a 3/4 inch male JIC end with 1-1/16-12 UN threads on one side and a male metric banjo end with M26 x 1.5 threads on the other.
