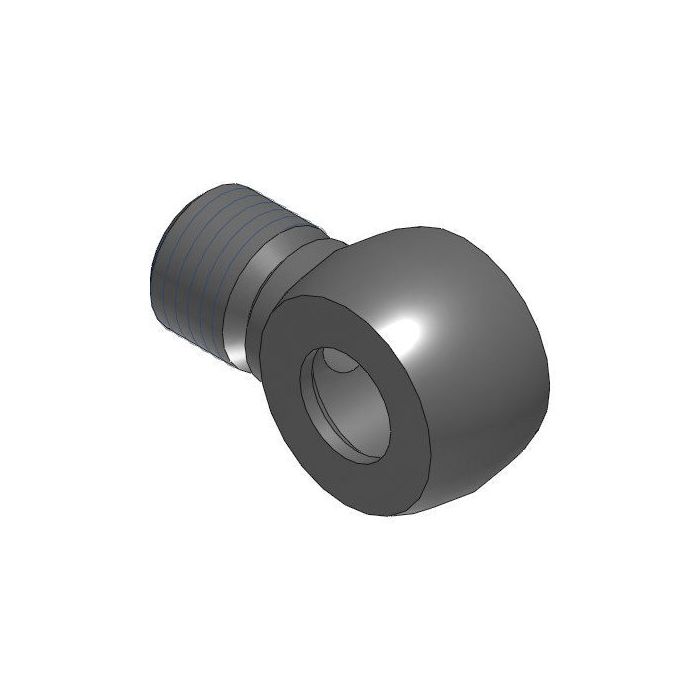

Mdin 24* Series L-Metric Banjo

Ask A Question

Description & Features

Designed for robust hydraulic applications, the 90° Elbow Mdin 24* Series L-Metric Banjo fitting provides reliable performance and durability. Constructed from high-quality steel, this fitting ensures longevity and strength in demanding environments. Featuring a dual M16 x 1.5 male thread design, it facilitates seamless integration with metric hydraulic systems.

The fitting's compact dimensions include an 18mm Adaptall A Misc and a 28mm Adaptall L Length, making it suitable for space-constrained setups. Its dual-side configuration supports both Din Tube and Metric connections, offering versatile compatibility. Ideal for industrial applications, this fitting is engineered to maintain optimal hydraulic flow and secure connections.

SKU: 3069L-16-16

Supplier Part Number (MPN): 3069L-16-16

Specifications

Brand
adapt-all
Connection Size 2
S16
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric Banjo
Dimension Standards
DIN 2353, DIN 7631, ISO 8434-1, ISO 9974
Dimensions
18 mm H
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
s Misc Dimensions
28 mm
Series
3069 Series
Thread Size
M16x1.5

Product Questions & Answers (1)

Question by: Dwight A on Jul 2, 2025, 4:52 PM
Got a metric system on a skid-mounted hydraulic unit and need a 90-degree turn in a tight spot. The M16 x 1.5 threads on both sides of this thing gonna work for that kind of setup?
Answer by: Customer Support on Jul 4, 2025, 8:20 AM
Both connection points on this fitting run M16 x 1.5 male threads, so if your system is already built around that metric sizing, it should slot right in. The 90-degree elbow geometry is what makes it useful in cramped installs where a straight fitting just won't clear surrounding components. Side 1 handles the DIN Tube connection at an L10 size, while Side 2 is a 16mm Metric connection, so you do get two distinct interface types despite the shared thread callout. Total length runs 28mm, which keeps the overall footprint pretty minimal.
