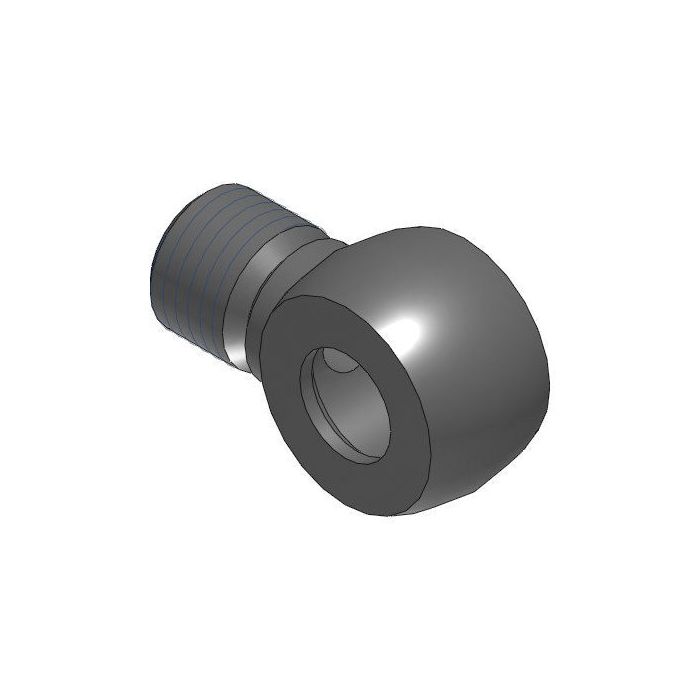

main product photo

Mdin 24* Series L-Metric Banjo

Ask A Question

Description & Features

Configured as a 90° elbow, this steel banjo fitting connects DIN tube to metric thread on both sides, making it well-suited for angled hydraulic line routing where straight-through connections are not practical. Both sides carry an M18 x 1.5 male thread, with Side 1 designated as a DIN tube connection at the L12 size and Side 2 as an 18mm metric connection.

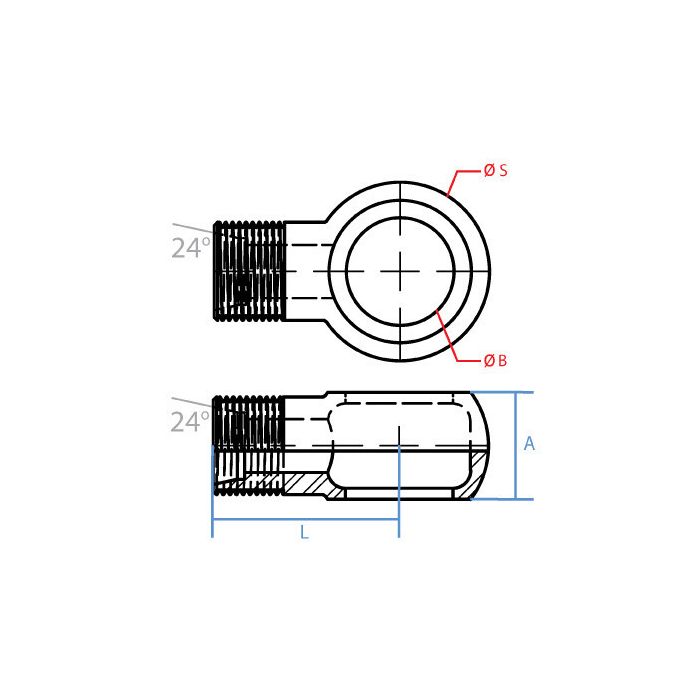

The Mdin 24° Series L-Metric Banjo from Adaptall measures 32.5mm in length, with an S dimension of 32mm and an A dimension of 20mm. Steel construction provides the durability expected in hydraulic circuit applications. The matched thread sizing on both ends simplifies line-to-component integration where a directional change is required.

SKU: 3069L-18-18

Supplier Part Number (MPN): 3069L-18-18

Specifications

Brand
adapt-all
a Dimensions
20 mm
Connection Size 1
L12
Connection Size 2
18 mm
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric Banjo
Dimension Standards
DIN 2353, DIN 7631, ISO 8434-1, ISO 9974
Dimensions
18 mm H
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
s Misc Dimensions
32 mm
Series
3069 Series
Thread Size
M18x1.5

Product Questions & Answers (1)

Question by: Sheila A on Aug 25, 2025, 9:37 AM
Will this banjo fitting work to make a 90-degree turn in a hydraulic line?
Answer by: Customer Support on Aug 27, 2025, 7:08 AM
Correct, this fitting is configured as a 90° elbow, making it suitable for angled hydraulic line routing where a straight connection won't do the trick.
