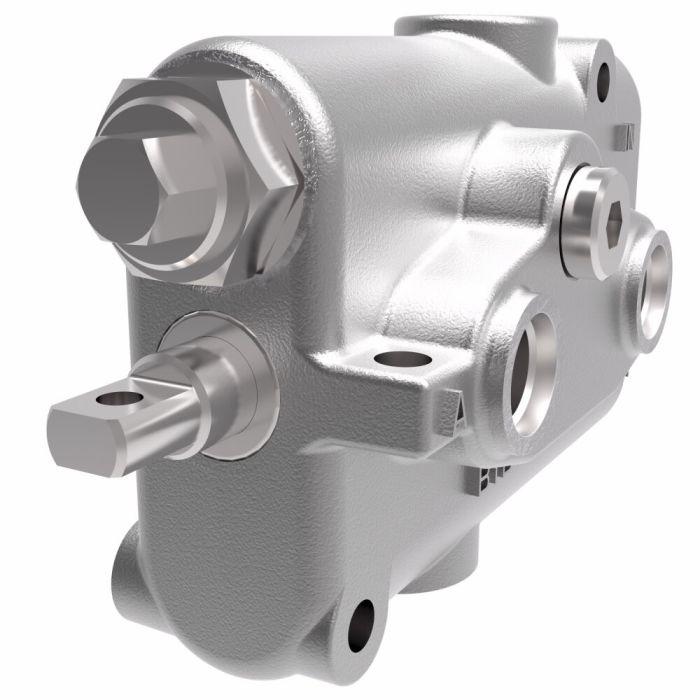

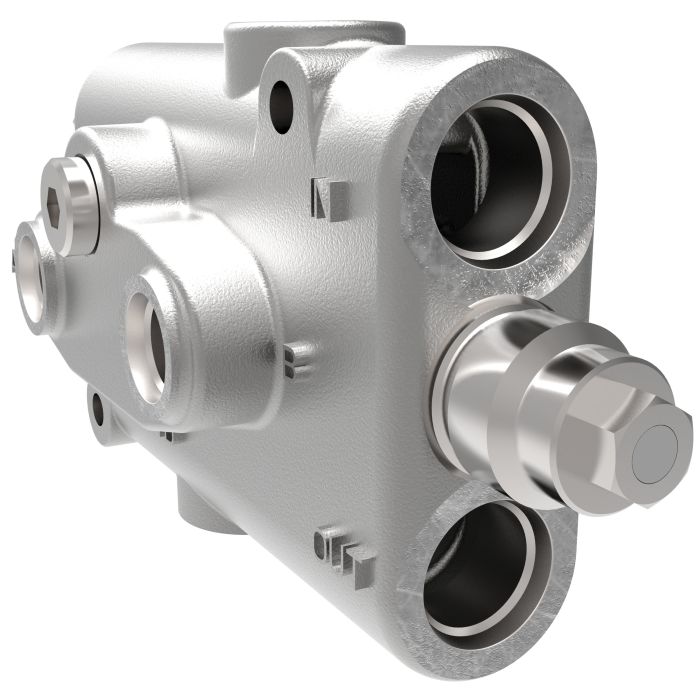

Built with cast iron bodies, this mono-block directional control valve delivers reliable performance across demanding mobile hydraulic applications. The Danfoss / Eaton 1Sec 4 Way Valve features cored internal passages and an open-center parallel circuit design suited for use in excavators, forklifts, forestry equipment, refuse trucks, agricultural machinery, truck mounted cranes, and marine applications. An adjustable pin-type relief valve comes factory set at 138 bar (2,000 psi), providing consistent pressure control out of the box. The mono-block construction supports compact integration into mobile equipment hydraulic circuits where space and durability are key considerations.
SKU: 30921-DSC
Supplier Part Number (MPN): 30921-DSC
Alternate Part Numbers: C1GH44
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1GH44, Alternate Part Number MINO-00287X54746
Cast iron bodies ensure solid construction and durability|Cored internal passages and open-center parallel circuit design|Adjustable pin type relief valve is factory set at 138 bar (2,000 psi)
ICC
Mobile Valves
Language
English
Net Pack Quantity Units
EA
Product Width
2.50
Sub Brand
None
Supplier Part Number
30921-DSC
Product Weight
8.00 lbs
Product Questions & Answers (1)
Question by: Terry A on Jun 12, 2025, 7:47 AM
Factory set at 2,000 psi right out of the box, is that relief valve something you can dial up or down once it's installed, or are you stuck with whatever it ships at?
Answer by: Customer Support on Jun 14, 2025, 6:09 AM
Adjustable, not fixed. The pin-type relief valve comes preset at 138 bar (2,000 psi) from the factory, but it can be changed after installation to suit your system's needs. So if your application calls for a different pressure setting, you've got room to work with it without swapping out the valve.
