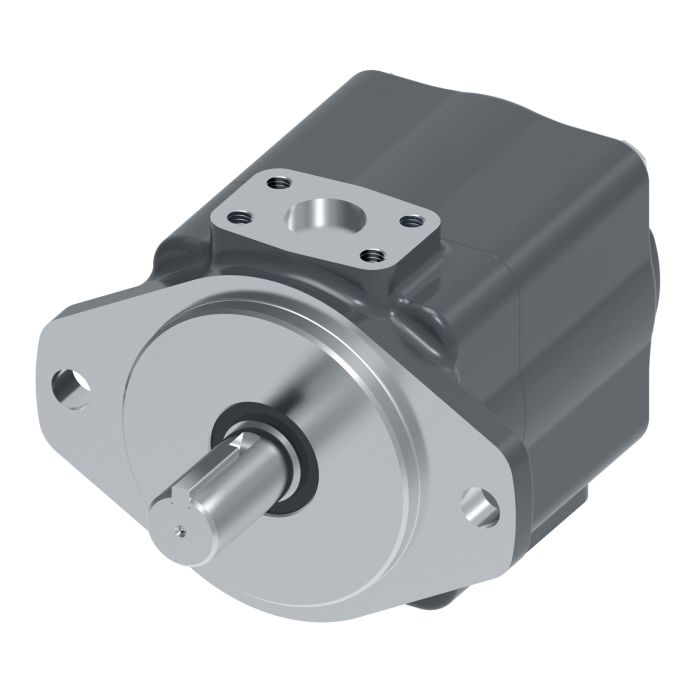

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

Ask A Question

Description & Features

Designed for demanding industrial applications, the Eaton Vickers 30VQ Series Vane Pump excels in power steering systems and small industrial units. With a robust 24 Ring Size and a 7/8 straight keyed shaft, this pump ensures efficient performance and reliability. Its clockwise rotation and opposite outlet port location enhance adaptability in complex setups.

Engineered for high-pressure, high-speed use, it offers a maximum pressure of 2000 PSI and a speed rating of 2000 RPM. Crafted with Buna-N seal material, the pump promises superior durability and volumetric efficiency. Trust the Eaton Vickers brand for longer operating life and consistent performance.

SKU: 418616-1

Supplier Part Number (MPN): 418616-1

Alternate Part Numbers: 30VQ24A1A20

Specifications

Application
Power Steering, Industrial small units and small press etc.
Displacement
4.72
Displacement
4.72
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
2000
Maximum Pressure
2000
Port Location
Opposite Outlet
Rated Flow
36.78
Rated Flow
36.78
Ring Size
24
Ring Size
24
Rotation
CW
Seal Material
Buna-N
Series
30VQ
Shaft
7/8 Straight Keyed
Shaft
7/8 Straight Keyed
Special Features
None
Speed Rating
2000 RPM
Speed Rating
2000 Rpm
Supplier Part Number
418616-1
Alternate Part Numbers
Alternate Part Number 30VQ24A1A20, Alternate Part Number MINO-00900H60943
Product Weight
32.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CW from Outlet, CW Rotation

30VQ24A-1B20 30VQ Series Vane Pump

418616-2

7/8 Straight Keyed

4.72

24

36.78

90° CW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

30VQ24A-1C20 30VQ Series Vane Pump

418616-3

7/8 Straight Keyed

4.72

24

36.78

in-Line with Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CCW from Outlet, CW Rotation

30VQ24A-1D20 30VQ Series Vane Pump

418616-4

7/8 Straight Keyed

4.72

24

36.78

90° CCW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

30VQ24A-1A20-L 30VQ Series Vane Pump

418616-5

7/8 Straight Keyed

4.72

24

36.78

Opposite Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

30VQ24A-1C20-L 30VQ Series Vane Pump

418616-7

7/8 Straight Keyed

4.72

24

36.78

in-Line with Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CW from Outlet, CW Rotation

30VQ28A-1B20 30VQ Series Vane Pump

421490-2

7/8 Straight Keyed

5.5

28

42.85

90° CW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

30VQ28A-1C20 30VQ Series Vane Pump

421490-3

7/8 Straight Keyed

5.5

28

42.85

in-Line with Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CCW from Outlet, CW Rotation

30VQ28A-1D20 30VQ Series Vane Pump

421490-4

7/8 Straight Keyed

5.5

28

42.85

90° CCW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

30VQ28A-1A20-L 30VQ Series Vane Pump

421490-5

7/8 Straight Keyed

5.5

28

42.85

Opposite Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

30VQ28A-1C20-L 30VQ Series Vane Pump

421490-7

7/8 Straight Keyed

5.5

28

42.85

in-Line with Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CCW from Outlet, CCW Rotation

30VQ28A-1D20-L 30VQ Series Vane Pump

421490-8

7/8 Straight Keyed

5.5

28

42.85

90° CCW from Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90° CW from Outlet, CW Rotation

30VQ28A-11B20 30VQ Series Vane Pump

421492-2

13 Tooth SAE B Splined

5.5

28

42.85

90° CW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

30VQ28A-11C20 30VQ Series Vane Pump

421492-3

13 Tooth SAE B Splined

5.5

28

42.85

in-Line with Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90° CCW from Outlet, CW Rotation

30VQ28A-11D20 30VQ Series Vane Pump

421492-4

13 Tooth SAE B Splined

5.5

28

42.85

90° CCW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

30VQ28A-11A20-L 30VQ Series Vane Pump

421492-5

13 Tooth SAE B Splined

5.5

28

42.85

Opposite Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

30VQ28A-11C20-L 30VQ Series Vane Pump

421492-7

13 Tooth SAE B Splined

5.5

28

42.85

in-Line with Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90° CCW from Outlet, CCW Rotation

30VQ28A-11D20-L 30VQ Series Vane Pump

421492-8

13 Tooth SAE B Splined

5.5

28

42.85

90° CCW from Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

30VQ24A-1A20 30VQ Series Vane Pump

418616-1

7/8 Straight Keyed

4.72

24

36.78

Opposite Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

30VQ28A-1A20 30VQ Series Vane Pump

421490-1

7/8 Straight Keyed

5.5

28

42.85

Opposite Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

30VQ28A-11A20 30VQ Series Vane Pump

421492-1

13 Tooth SAE B Splined

5.5

28

42.85

Opposite Outlet

CW

2000

2000 RPM

Product Questions & Answers (3)

Question by: Wes M on Sep 7, 2025, 5:04 PM
Running a small press setup and need something that'll hold up at continuous high pressure, what's this pump rated for before it starts giving trouble?
Answer by: Customer Support on Sep 9, 2025, 7:08 AM
For pressure, you're looking at a 2000 PSI maximum, and the speed ceiling sits at 2000 RPM. The 30VQ series was built with high-pressure, high-speed industrial work in mind, so those aren't soft limits on a lightly-rated unit. Rated flow comes in at 36.78 GPM with a 24 ring size, which puts it in solid territory for small press and similar industrial applications.
Question by: Earl C on Jan 31, 2026, 11:20 AM
got a 30VQ24A1A20 pump on the shelf, is this 418616-1 the same thing or am i gonna be off some
Answer by: Customer Support on Feb 1, 2026, 12:15 PM
Fit-wise, 418616-1 is cross-referenced to alternate part number 30VQ24A1A20, and the model shown is 30VQ24A-1A20 in the 30VQ series. Key identifiers on this unit are the 24 ring size, 7/8 straight keyed shaft, CW rotation, and the outlet port location listed as opposite outlet.
Question by: Larry B on May 8, 2025, 6:59 PM
What kinda machines is this pump typically used on?
Answer by: Customer Support on May 10, 2025, 4:08 PM
It's generally used in power steering systems, smaller industrial units, and small presses.
