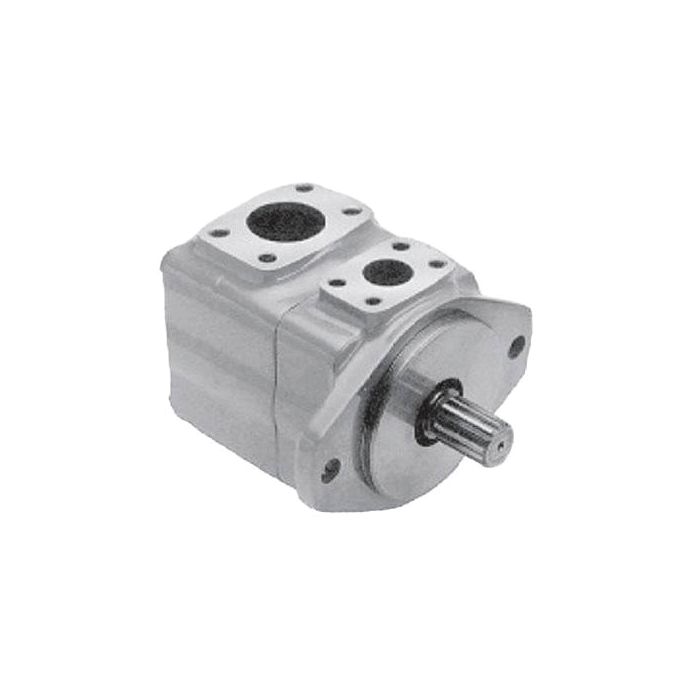

main product photo

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CW from Outlet, CW Rotation

Ask A Question

Description & Features

This Eaton Vickers 30VQ Series Vane Pump is designed for power steering and industrial applications such as small units and small presses. Known for its outstanding volumetric efficiency and long operating life, this vane pump is built for high-pressure, high-speed applications.

This model features a 24 ring size, a 7/8 straight keyed shaft, clockwise rotation, and a port location 90° clockwise from the outlet. It has a rated flow of 36.78, a displacement of 4.72, and a maximum pressure of 2000 PSI. The seal material is Buna-N.

SKU: 418616-2

Supplier Part Number (MPN): 418616-2

Specifications

Application
Power Steering, Industrial small units and small press etc.
Displacement
4.72
Displacement
4.72
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
2000
Maximum Pressure
2000
Port Location
90° CW from Outlet
Rated Flow
36.78
Rated Flow
36.78
Ring Size
24
Ring Size
24
Rotation
CW
Seal Material
Buna-N
Series
30VQ
Shaft
7/8 Straight Keyed
Shaft
7/8 Straight Keyed
Special Features
None
Speed Rating
2000 RPM
Speed Rating
2000 Rpm
Supplier Part Number
418616-2
Alternate Part Numbers
Alternate Part Number MINO-00900X72589
Product Weight
32.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CW from Outlet, CW Rotation

30VQ24A-1B20 30VQ Series Vane Pump

418616-2

7/8 Straight Keyed

4.72

24

36.78

90° CW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

30VQ24A-1C20 30VQ Series Vane Pump

418616-3

7/8 Straight Keyed

4.72

24

36.78

in-Line with Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CCW from Outlet, CW Rotation

30VQ24A-1D20 30VQ Series Vane Pump

418616-4

7/8 Straight Keyed

4.72

24

36.78

90° CCW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

30VQ24A-1A20-L 30VQ Series Vane Pump

418616-5

7/8 Straight Keyed

4.72

24

36.78

Opposite Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

30VQ24A-1C20-L 30VQ Series Vane Pump

418616-7

7/8 Straight Keyed

4.72

24

36.78

in-Line with Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CW from Outlet, CW Rotation

30VQ28A-1B20 30VQ Series Vane Pump

421490-2

7/8 Straight Keyed

5.5

28

42.85

90° CW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

30VQ28A-1C20 30VQ Series Vane Pump

421490-3

7/8 Straight Keyed

5.5

28

42.85

in-Line with Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CCW from Outlet, CW Rotation

30VQ28A-1D20 30VQ Series Vane Pump

421490-4

7/8 Straight Keyed

5.5

28

42.85

90° CCW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

30VQ28A-1A20-L 30VQ Series Vane Pump

421490-5

7/8 Straight Keyed

5.5

28

42.85

Opposite Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

30VQ28A-1C20-L 30VQ Series Vane Pump

421490-7

7/8 Straight Keyed

5.5

28

42.85

in-Line with Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CCW from Outlet, CCW Rotation

30VQ28A-1D20-L 30VQ Series Vane Pump

421490-8

7/8 Straight Keyed

5.5

28

42.85

90° CCW from Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90° CW from Outlet, CW Rotation

30VQ28A-11B20 30VQ Series Vane Pump

421492-2

13 Tooth SAE B Splined

5.5

28

42.85

90° CW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

30VQ28A-11C20 30VQ Series Vane Pump

421492-3

13 Tooth SAE B Splined

5.5

28

42.85

in-Line with Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90° CCW from Outlet, CW Rotation

30VQ28A-11D20 30VQ Series Vane Pump

421492-4

13 Tooth SAE B Splined

5.5

28

42.85

90° CCW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

30VQ28A-11A20-L 30VQ Series Vane Pump

421492-5

13 Tooth SAE B Splined

5.5

28

42.85

Opposite Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

30VQ28A-11C20-L 30VQ Series Vane Pump

421492-7

13 Tooth SAE B Splined

5.5

28

42.85

in-Line with Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90° CCW from Outlet, CCW Rotation

30VQ28A-11D20-L 30VQ Series Vane Pump

421492-8

13 Tooth SAE B Splined

5.5

28

42.85

90° CCW from Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

30VQ24A-1A20 30VQ Series Vane Pump

418616-1

7/8 Straight Keyed

4.72

24

36.78

Opposite Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

30VQ28A-1A20 30VQ Series Vane Pump

421490-1

7/8 Straight Keyed

5.5

28

42.85

Opposite Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

30VQ28A-11A20 30VQ Series Vane Pump

421492-1

13 Tooth SAE B Splined

5.5

28

42.85

Opposite Outlet

CW

2000

2000 RPM

Product Questions & Answers (1)

Question by: Duane R on Dec 9, 2025, 4:33 PM
pump says CW rotation, does that mean it won't work if my system runs counterclockwise?
Answer by: Customer Support on Dec 11, 2025, 6:00 AM
Correct, this pump is built for clockwise rotation only. Running it backwards would cause internal damage pretty quick, so if your power unit spins counterclockwise you'd be looking at a different model altogether. Worth double-checking your prime mover's output shaft direction before ordering.
