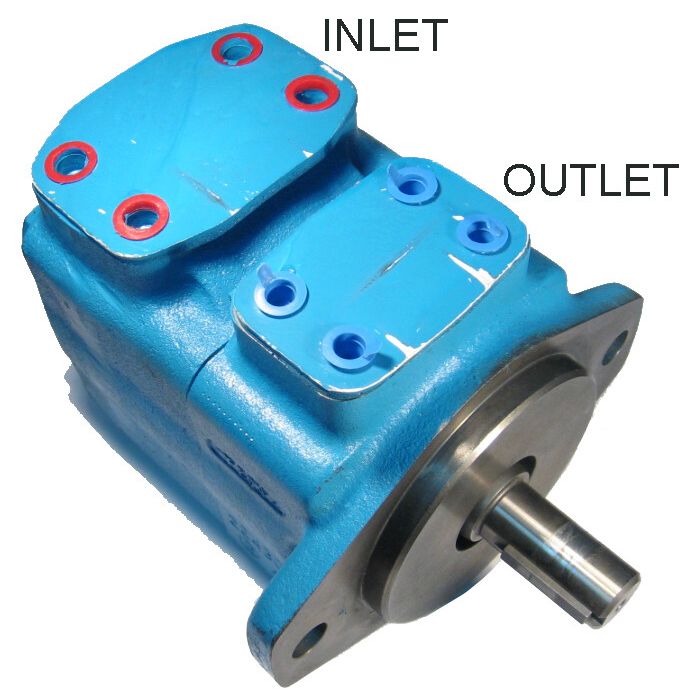

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

Description & Features

Rated for a maximum pressure of 2000 PSI and a speed of 2000 RPM, this Eaton Vickers 30VQ Series Vane Pump is built for demanding hydraulic circuits where consistent flow and reliable performance are required. With a ring size of 24 and a rated flow of 36.78 GPM, it delivers substantial hydraulic output suited to industrial mobile and stationary applications.

The 30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation features a 7/8-inch straight keyed shaft and counter-clockwise rotation, making shaft and drive compatibility straightforward to verify during system integration. The in-line port configuration simplifies circuit layout in space-constrained installations. Manufactured under the Eaton Vickers brand, now part of the Danfoss Power Solutions portfolio, this pump carries catalog number C1MF71 and corresponds to model 30VQ24A-1C20-L.

SKU: 418616-7

Supplier Part Number (MPN): 418616-7

Specifications

Displacement 4.72	Displacement 4.72	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Maximum Pressure 2000	Maximum Pressure 2000	Port Location in-Line with Outlet	Rated Flow 36.78	Rated Flow 36.78	Ring Size 24	Ring Size 24	Rotation CCW	Shaft 7/8 Straight Keyed	Shaft 7/8 Straight Keyed	Speed Rating 2000 RPM	Speed Rating 2000 Rpm	Supplier Part Number 418616-7	Alternate Part Numbers Alternate Part Number MINO-00900X55867	Product Weight 34.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
30VQ24A-1B20 30VQ Series Vane Pump	418616-2	7/8 Straight Keyed	4.72	24	36.78	90° CW from Outlet	CW	2000	2000 RPM
30VQ24A-1C20 30VQ Series Vane Pump	418616-3	7/8 Straight Keyed	4.72	24	36.78	in-Line with Outlet	CW	2000	2000 RPM
30VQ24A-1D20 30VQ Series Vane Pump	418616-4	7/8 Straight Keyed	4.72	24	36.78	90° CCW from Outlet	CW	2000	2000 RPM
30VQ24A-1A20-L 30VQ Series Vane Pump	418616-5	7/8 Straight Keyed	4.72	24	36.78	Opposite Outlet	CCW	2000	2000 RPM
30VQ24A-1C20-L 30VQ Series Vane Pump	418616-7	7/8 Straight Keyed	4.72	24	36.78	in-Line with Outlet	CCW	2000	2000 RPM
30VQ28A-1B20 30VQ Series Vane Pump	421490-2	7/8 Straight Keyed	5.5	28	42.85	90° CW from Outlet	CW	2000	2000 RPM
30VQ28A-1C20 30VQ Series Vane Pump	421490-3	7/8 Straight Keyed	5.5	28	42.85	in-Line with Outlet	CW	2000	2000 RPM
30VQ28A-1D20 30VQ Series Vane Pump	421490-4	7/8 Straight Keyed	5.5	28	42.85	90° CCW from Outlet	CW	2000	2000 RPM
30VQ28A-1A20-L 30VQ Series Vane Pump	421490-5	7/8 Straight Keyed	5.5	28	42.85	Opposite Outlet	CCW	2000	2000 RPM
30VQ28A-1C20-L 30VQ Series Vane Pump	421490-7	7/8 Straight Keyed	5.5	28	42.85	in-Line with Outlet	CCW	2000	2000 RPM
30VQ28A-1D20-L 30VQ Series Vane Pump	421490-8	7/8 Straight Keyed	5.5	28	42.85	90° CCW from Outlet	CCW	2000	2000 RPM
30VQ28A-11B20 30VQ Series Vane Pump	421492-2	13 Tooth SAE B Splined	5.5	28	42.85	90° CW from Outlet	CW	2000	2000 RPM
30VQ28A-11C20 30VQ Series Vane Pump	421492-3	13 Tooth SAE B Splined	5.5	28	42.85	in-Line with Outlet	CW	2000	2000 RPM
30VQ28A-11D20 30VQ Series Vane Pump	421492-4	13 Tooth SAE B Splined	5.5	28	42.85	90° CCW from Outlet	CW	2000	2000 RPM
30VQ28A-11A20-L 30VQ Series Vane Pump	421492-5	13 Tooth SAE B Splined	5.5	28	42.85	Opposite Outlet	CCW	2000	2000 RPM
30VQ28A-11C20-L 30VQ Series Vane Pump	421492-7	13 Tooth SAE B Splined	5.5	28	42.85	in-Line with Outlet	CCW	2000	2000 RPM
30VQ28A-11D20-L 30VQ Series Vane Pump	421492-8	13 Tooth SAE B Splined	5.5	28	42.85	90° CCW from Outlet	CCW	2000	2000 RPM
30VQ24A-1A20 30VQ Series Vane Pump	418616-1	7/8 Straight Keyed	4.72	24	36.78	Opposite Outlet	CW	2000	2000 RPM
30VQ28A-1A20 30VQ Series Vane Pump	421490-1	7/8 Straight Keyed	5.5	28	42.85	Opposite Outlet	CW	2000	2000 RPM
30VQ28A-11A20 30VQ Series Vane Pump	421492-1	13 Tooth SAE B Splined	5.5	28	42.85	Opposite Outlet	CW	2000	2000 RPM

Product Questions & Answers (1)

Question by: Neal P on May 22, 2025, 3:43 PM

pump says CCW rotation on the spec, does that mean it won't work if I try to run it clockwise, or is there some way to flip it?

Answer by: Customer Support on May 24, 2025, 6:10 AM

CCW is fixed on this one. The 30VQ24A is built specifically for counterclockwise rotation and running it the wrong direction will cause the vanes to load incorrectly and the pump won't build pressure right. You'd need a different model speced for CW if that's what your system calls for.
