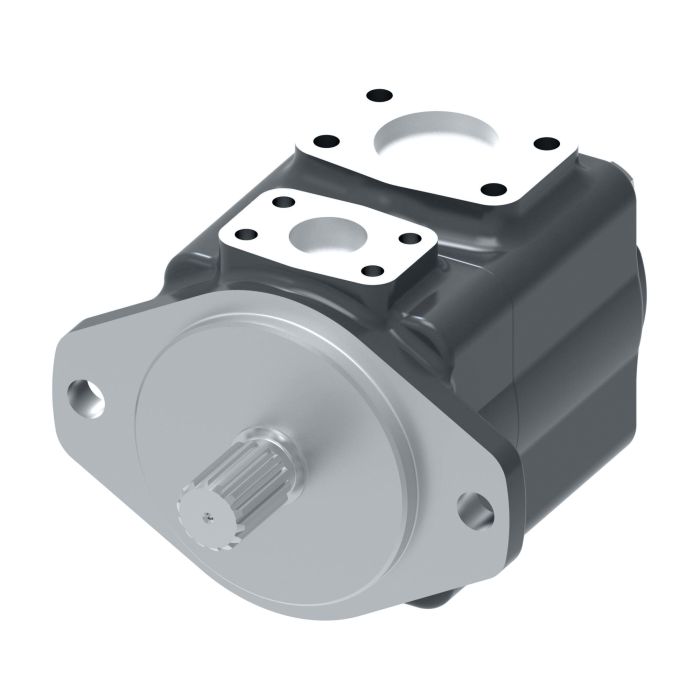

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

Ask A Question

Description & Features

The Eaton Vickers 30VQ Series Vane Pump is designed for demanding high-pressure, high-speed applications. Featuring a 28 ring size and a 7/8 straight keyed shaft, this pump provides outstanding volumetric efficiency and a longer operating life.

This single vane pump is well-suited for power steering and industrial small units, as well as small press applications. Designed with a clockwise rotation and a Buna-N seal material, this model (30VQ28A-1C20) features an in-line outlet port location. It has a rated flow of 42.85 GPM and a maximum pressure of 2000 PSI when operating at its rated speed of 2000 RPM.

SKU: 421490-3

Supplier Part Number (MPN): 421490-3

Alternate Part Numbers: 30VQ28A1C20, C1BP81

Specifications

Application
Power Steering, Industrial small units and small press etc.
Displacement
5.50
Displacement
5.5
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
2000
Maximum Pressure
2000
Port Location
in-Line with Outlet
Rated Flow
42.85
Rated Flow
42.85
Ring Size
28
Ring Size
28
Rotation
CW
Seal Material
Buna-N
Series
30VQ
Shaft
7/8 Straight Keyed
Shaft
7/8 Straight Keyed
Special Features
None
Speed Rating
2000 RPM
Speed Rating
2000 Rpm
Supplier Part Number
421490-3
Alternate Part Numbers
Alternate Part Number 30VQ28A1C20, Alternate Part Number C1BP81, Alternate Part Number MINO-00900H60949
Product Weight
32.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CW from Outlet, CW Rotation

30VQ24A-1B20 30VQ Series Vane Pump

418616-2

7/8 Straight Keyed

4.72

24

36.78

90° CW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

30VQ24A-1C20 30VQ Series Vane Pump

418616-3

7/8 Straight Keyed

4.72

24

36.78

in-Line with Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CCW from Outlet, CW Rotation

30VQ24A-1D20 30VQ Series Vane Pump

418616-4

7/8 Straight Keyed

4.72

24

36.78

90° CCW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

30VQ24A-1A20-L 30VQ Series Vane Pump

418616-5

7/8 Straight Keyed

4.72

24

36.78

Opposite Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

30VQ24A-1C20-L 30VQ Series Vane Pump

418616-7

7/8 Straight Keyed

4.72

24

36.78

in-Line with Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CW from Outlet, CW Rotation

30VQ28A-1B20 30VQ Series Vane Pump

421490-2

7/8 Straight Keyed

5.5

28

42.85

90° CW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

30VQ28A-1C20 30VQ Series Vane Pump

421490-3

7/8 Straight Keyed

5.5

28

42.85

in-Line with Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CCW from Outlet, CW Rotation

30VQ28A-1D20 30VQ Series Vane Pump

421490-4

7/8 Straight Keyed

5.5

28

42.85

90° CCW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

30VQ28A-1A20-L 30VQ Series Vane Pump

421490-5

7/8 Straight Keyed

5.5

28

42.85

Opposite Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

30VQ28A-1C20-L 30VQ Series Vane Pump

421490-7

7/8 Straight Keyed

5.5

28

42.85

in-Line with Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90° CCW from Outlet, CCW Rotation

30VQ28A-1D20-L 30VQ Series Vane Pump

421490-8

7/8 Straight Keyed

5.5

28

42.85

90° CCW from Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90° CW from Outlet, CW Rotation

30VQ28A-11B20 30VQ Series Vane Pump

421492-2

13 Tooth SAE B Splined

5.5

28

42.85

90° CW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

30VQ28A-11C20 30VQ Series Vane Pump

421492-3

13 Tooth SAE B Splined

5.5

28

42.85

in-Line with Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90° CCW from Outlet, CW Rotation

30VQ28A-11D20 30VQ Series Vane Pump

421492-4

13 Tooth SAE B Splined

5.5

28

42.85

90° CCW from Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

30VQ28A-11A20-L 30VQ Series Vane Pump

421492-5

13 Tooth SAE B Splined

5.5

28

42.85

Opposite Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

30VQ28A-11C20-L 30VQ Series Vane Pump

421492-7

13 Tooth SAE B Splined

5.5

28

42.85

in-Line with Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90° CCW from Outlet, CCW Rotation

30VQ28A-11D20-L 30VQ Series Vane Pump

421492-8

13 Tooth SAE B Splined

5.5

28

42.85

90° CCW from Outlet

CCW

2000

2000 RPM

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

30VQ24A-1A20 30VQ Series Vane Pump

418616-1

7/8 Straight Keyed

4.72

24

36.78

Opposite Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

30VQ28A-1A20 30VQ Series Vane Pump

421490-1

7/8 Straight Keyed

5.5

28

42.85

Opposite Outlet

CW

2000

2000 RPM

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

30VQ28A-11A20 30VQ Series Vane Pump

421492-1

13 Tooth SAE B Splined

5.5

28

42.85

Opposite Outlet

CW

2000

2000 RPM

Product Questions & Answers (2)

Question by: Pete S on Feb 7, 2026, 3:24 PM
trying to match up what i’ve got now. is this the 30VQ28A-1C20 pump with a 7/8 straight keyed shaft and clockwise rotation?
Answer by: Customer Support on Feb 8, 2026, 9:42 PM
Match it up to the model number and the key details. This unit is model 30VQ28A-1C20 in the 30VQ series, it has a 28 ring size, a 7/8 straight keyed shaft, and it is CW rotation.
Question by: Phil B on Sep 23, 2025, 1:37 PM
got a 30VQ28A-1C20 on an old press unit and need to know if this is the right replacement before I order, shaft size and rotation match up?
Answer by: Customer Support on Sep 24, 2025, 6:37 PM
For a direct swap on that model, you're looking at a 7/8 straight keyed shaft and clockwise rotation, with the outlet running in-line with the inlet. Ring size is 28. If your existing pump matches those details, this one lines up as a replacement. Displacement comes in at 5.5 and rated flow is 42.85, so confirm those numbers work for your press circuit before pulling the trigger.
